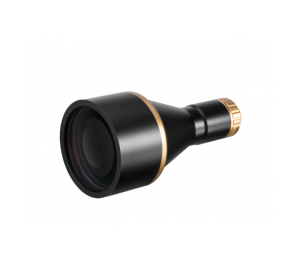

WTL 系列 千万像素双远心镜头

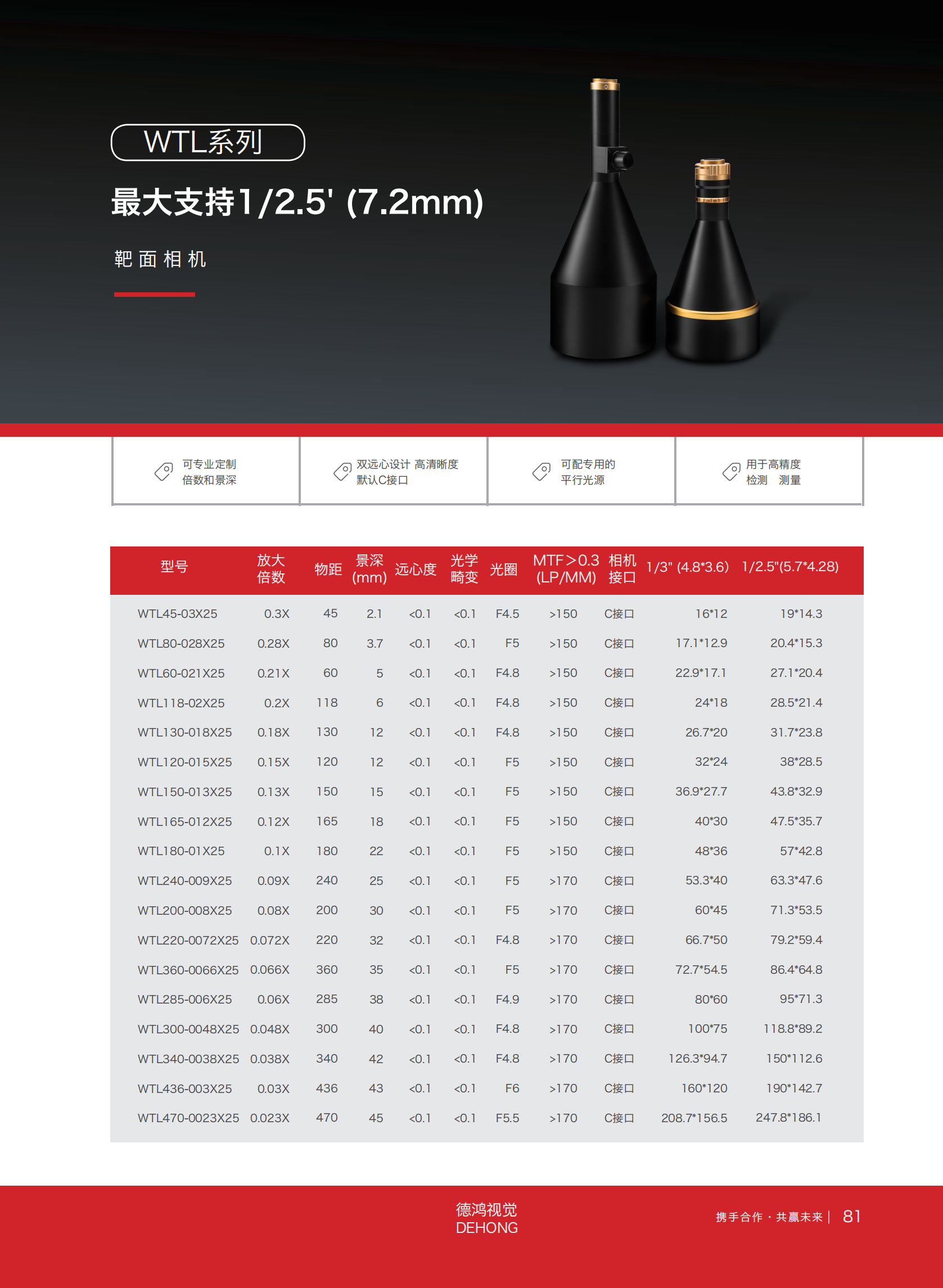

| 型号 | 放大倍数 | 物距 | 景深 （mm) | 光圈 (F) | 分辨率（um) | 远心度 | 光学畸变 | MTF>0.3 (LP/MM) | 1/3" CCD视野 (4.8*3.6 ） | 1/2.5" CCD视野 (5.7*4.28) |
| WTL45-03X25 | 0.3X | 45 | 2.1 | F4.5 | 10.1 | <0.1 | <0.1 | >150 | 16*12 | 19*14.3 |
| WTL80-028X25 | 0.28X | 80 | 3.7 | F5 | 12.0 | <0.1 | <0.1 | >150 | 17.1*12.9 | 20.4*15.3 |
| WTL60-021X25 | 0.21X | 60 | 5 | F4.8 | 15.3 | <0.1 | <0.1 | >150 | 22.9*17.1 | 27.1*20.4 |
| WTL118-02X25 | 0.2X | 118 | 6 | F4.8 | 16.1 | <0.1 | <0.1 | >150 | 24*18 | 28.5*21.4 |
| WTL130-018X25 | 0.18X | 130 | 12 | F4.8 | 17.9 | <0.1 | <0.1 | >150 | 26.7*20 | 31.7*23.8 |
| WTL120-015X25 | 0.15X | 120 | 12 | F5 | 22.4 | <0.1 | <0.1 | >150 | 32*24 | 38*28.5 |
| WTL150-013X25 | 0.13X | 150 | 15 | F5 | 25.8 | <0.1 | <0.1 | >150 | 36.9*27.7 | 43.8*32.9 |
| WTL165-012X25 | 0.12X | 165 | 18 | F5 | 28.0 | <0.1 | <0.1 | >150 | 40*30 | 47.5*35.7 |
| WTL180-01X25 | 0.1X | 180 | 22 | F5 | 33.6 | <0.1 | <0.1 | >150 | 48*36 | 57*42.8 |
| WTL240-009X25 | 0.09X | 240 | 25 | F5 | 37.3 | <0.1 | <0.1 | >170 | 53.3*40 | 63.3*47.6 |
| WTL200-008X25 | 0.08X | 200 | 30 | F5 | 41.9 | <0.1 | <0.1 | >170 | 60*45 | 71.3*53.5 |
| WTL220-0072X25 | 0.072X | 220 | 32 | F4.8 | 44.7 | <0.1 | <0.1 | >170 | 66.7*50 | 79.2*59.4 |
| WTL360-0066X25 | 0.066X | 360 | 35 | F5 | 50.8 | <0.1 | <0.1 | >170 | 72.7*54.5 | 86.4*64.8 |
| WTL285-006X25 | 0.06X | 285 | 38 | F4.9 | 54.8 | <0.1 | <0.1 | >170 | 80*60 | 95*71.3 |
| WTL300-0048X25 | 0.048X | 300 | 40 | F4.8 | 67.1 | <0.1 | <0.1 | >170 | 100*75 | 118.8*89.2 |
| WTL340-0038X25 | 0.038X | 340 | 42 | F4.8 | 84.8 | <0.1 | <0.1 | >170 | 126.3*94.7 | 150*112.6 |
| WTL436-003X25 | 0.03X | 436 | 43 | F6 | 134.2 | <0.1 | <0.1 | >170 | 160*120 | 190*142.7 |
| WTL470-0023X25 | 0.023X | 470 | 45 | F5.5 | 160.5 | <0.1 | <0.1 | >170 | 208.7*156.5 | 247.8*186.1 |

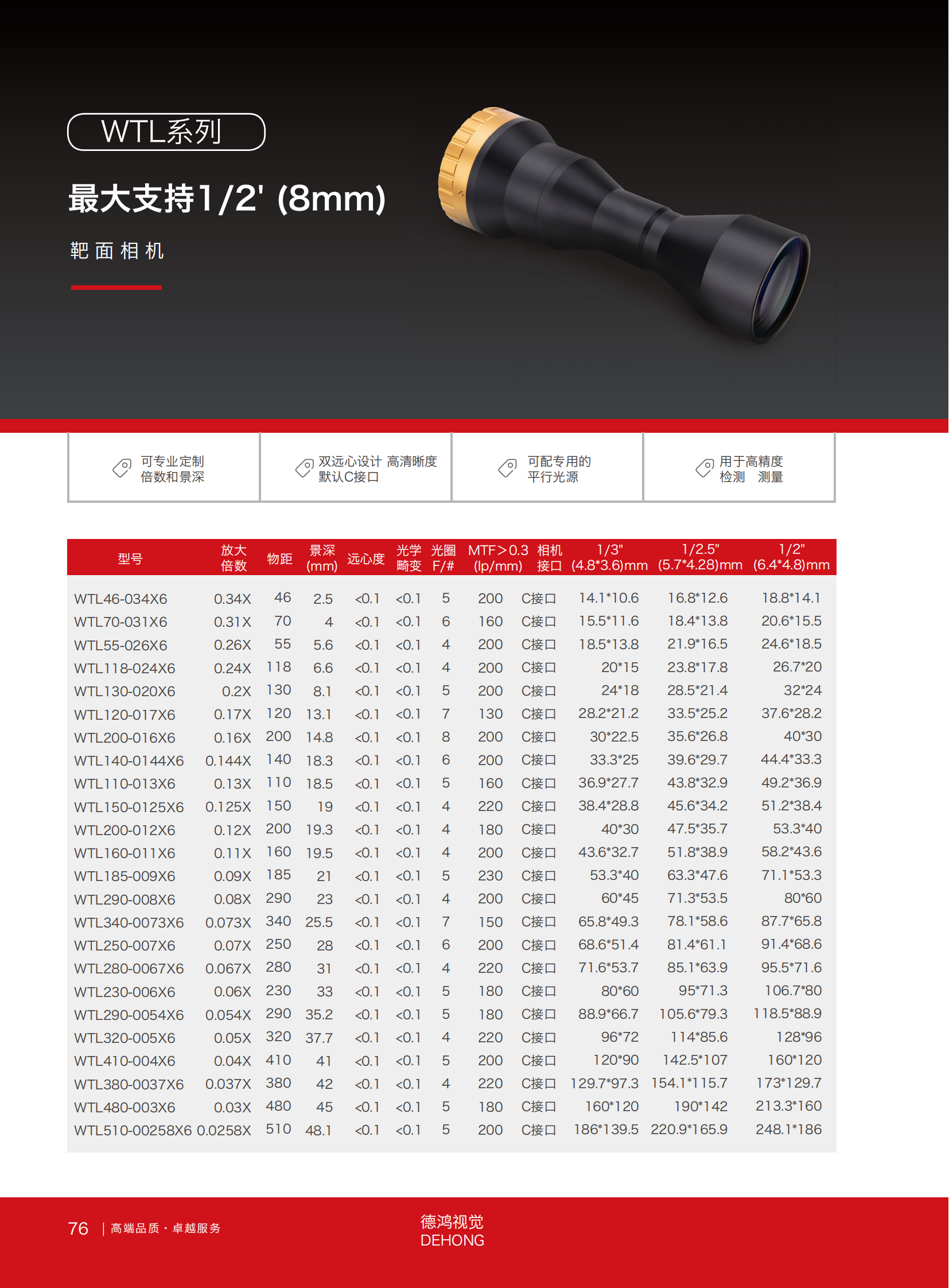

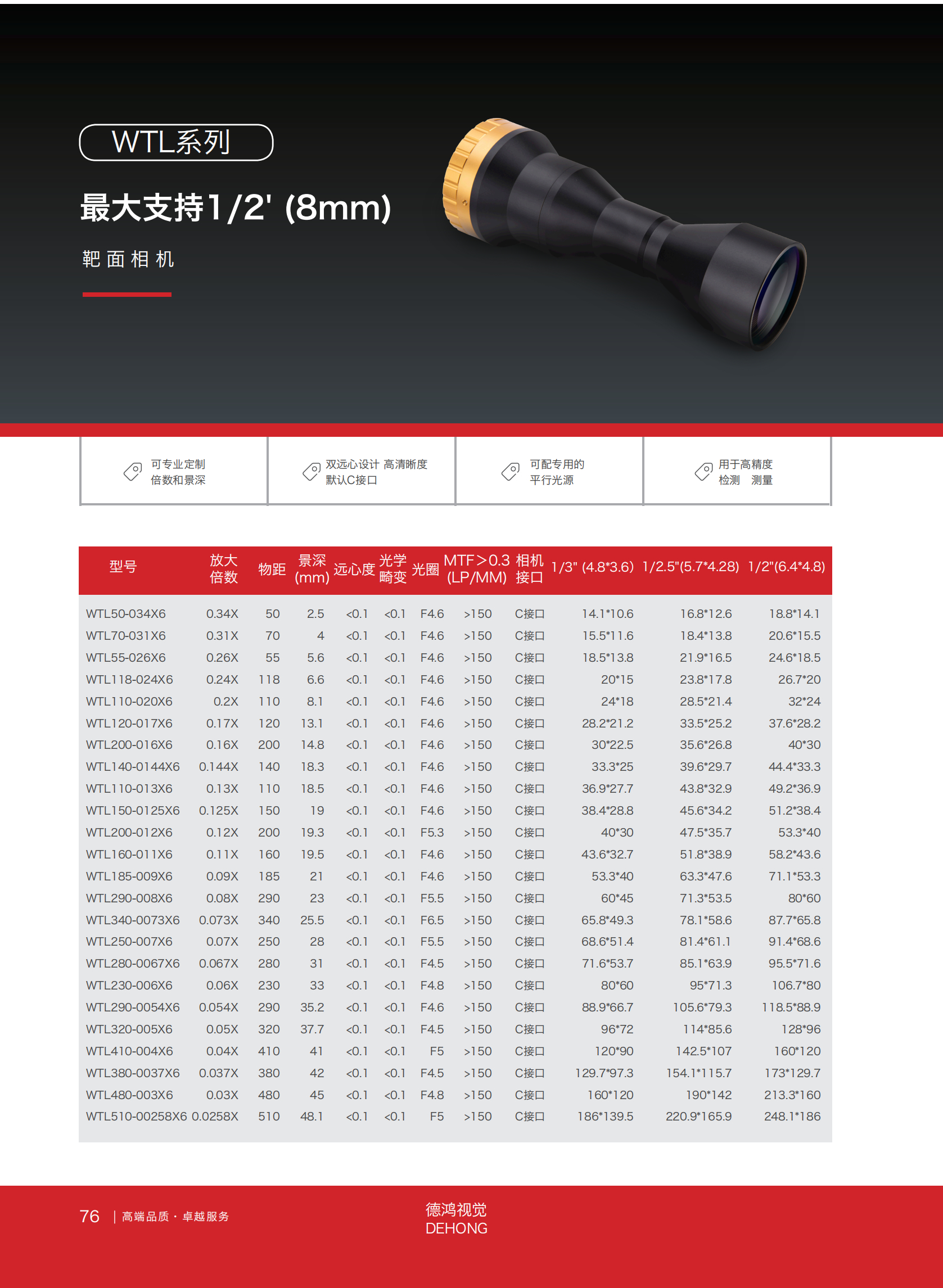

| 型号 | 放大倍数 | 物距 | 景深（mm) | 远心度 | 光圈 (F) | 分辨率（um) | 光学畸变 | MTF>0.3 (LP/MM) | 1/3"CCD视野 (4.8*3.6 ） | 1/2.5"CCD视野 (5.7*4.28) | 1/2"CCD视野 (6.4*4.8) |
| WTL46-034X6 | 0.34X | 46 | 2.5 | <0.1 | F4.6 | 9.1 | <0.1 | >150 | 14.1*10.6 | 16.8*12.6 | 18.8*14.1 |
| WTL70-031X6 | 0.31X | 70 | 4 | <0.1 | F4.6 | 10.0 | <0.1 | >150 | 15.5*11.6 | 18.4*13.8 | 20.6*15.5 |
| WTL55-026X6 | 0.26X | 55 | 5.6 | <0.1 | F4.6 | 11.9 | <0.1 | >150 | 18.5*13.8 | 21.9*16.5 | 24.6*18.5 |
| WTL118-024X6 | 0.24X | 118 | 6.6 | <0.1 | F4.6 | 12.9 | <0.1 | >150 | 20*15 | 23.8*17.8 | 26.7*20 |
| WTL130-020X6 | 0.2X | 130 | 8.1 | <0.1 | F4.6 | 16.1 | <0.1 | >150 | 24*18 | 28.5*21.4 | 32*24 |
| WTL120-017X6 | 0.17X | 120 | 13.1 | <0.1 | F4.6 | 18.2 | <0.1 | >150 | 28.2*21.2 | 33.5*25.2 | 37.6*28.2 |
| WTL200-016X6 | 0.16X | 200 | 14.8 | <0.1 | F4.6 | 19.3 | <0.1 | >150 | 30*22.5 | 35.6*26.8 | 40*30 |
| WTL140-0144X6 | 0.144X | 140 | 18.3 | <0.1 | F4.6 | 21.4 | <0.1 | >150 | 33.3*25 | 39.6*29.7 | 44.4*33.3 |
| WTL110-013X6 | 0.13X | 110 | 18.5 | <0.1 | F4.6 | 23.2 | <0.1 | >150 | 36.9*27.7 | 43.8*32.9 | 49.2*36.9 |
| WTL150-0125X6 | 0.125X | 150 | 19 | <0.1 | F4.6 | 24.7 | <0.1 | >150 | 38.4*28.8 | 45.6*34.2 | 51.2*38.4 |
| WTL200-012X6 | 0.12X | 200 | 19.3 | <0.1 | F5.3 | 29.6 | <0.1 | >150 | 40*30 | 47.5*35.7 | 53.3*40 |
| WTL160-011X6 | 0.11X | 160 | 19.5 | <0.1 | F4.6 | 28.1 | <0.1 | >150 | 43.6*32.7 | 51.8*38.9 | 58.2*43.6 |
| WTL185-009X6 | 0.09X | 185 | 21 | <0.1 | F4.6 | 34.3 | <0.1 | >150 | 53.3*40 | 63.3*47.6 | 71.1*53.3 |
| WTL290-008X6 | 0.08X | 290 | 23 | <0.1 | F5.5 | 46.1 | <0.1 | >150 | 60*45 | 71.3*53.5 | 80*60 |
| WTL340-0073X6 | 0.073X | 340 | 25.5 | <0.1 | F6.5 | 59.7 | <0.1 | >150 | 65.8*49.3 | 78.1*58.6 | 87.7*65.8 |
| WTL250-007X6 | 0.07X | 250 | 28 | <0.1 | F5.5 | 52.7 | <0.1 | >150 | 68.6*51.4 | 81.4*61.1 | 91.4*68.6 |
| WTL280-0067X6 | 0.067X | 280 | 31 | <0.1 | F4.5 | 45.1 | <0.1 | >150 | 71.6*53.7 | 85.1*63.9 | 95.5*71.6 |
| WTL230-006X6 | 0.06X | 230 | 33 | <0.1 | F4.8 | 53.7 | <0.1 | >150 | 80*60 | 95*71.3 | 106.7*80 |
| WTL290-0054X6 | 0.054X | 290 | 35.2 | <0.1 | F4.6 | 59.6 | <0.1 | >150 | 88.9*66.7 | 105.6*79.3 | 118.5*88.9 |
| WTL320-005X6 | 0.05X | 320 | 37.7 | <0.1 | F4.5 | 60.4 | <0.1 | >150 | 96*72 | 114*85.6 | 128*96 |
| WTL410-004X6 | 0.04X | 410 | 41 | <0.1 | F5 | 83.9 | <0.1 | >150 | 120*90 | 142.5*107 | 160*120 |
| WTL380-0037X6 | 0.037X | 380 | 42 | <0.1 | F4.5 | 81.6 | <0.1 | >150 | 129.7*97.3 | 154.1*115.7 | 173*129.7 |
| WTL480-003X6 | 0.03X | 480 | 45 | <0.1 | F4.8 | 107.4 | <0.1 | >150 | 160*120 | 190*142 | 213.3*160 |
| WTL510-00258X6 | 0.0258X | 510 | 48.1 | <0.1 | F5 | 130.0 | <0.1 | >150 | 186*139.5 | 220.9*165.9 | 248.1*186 |

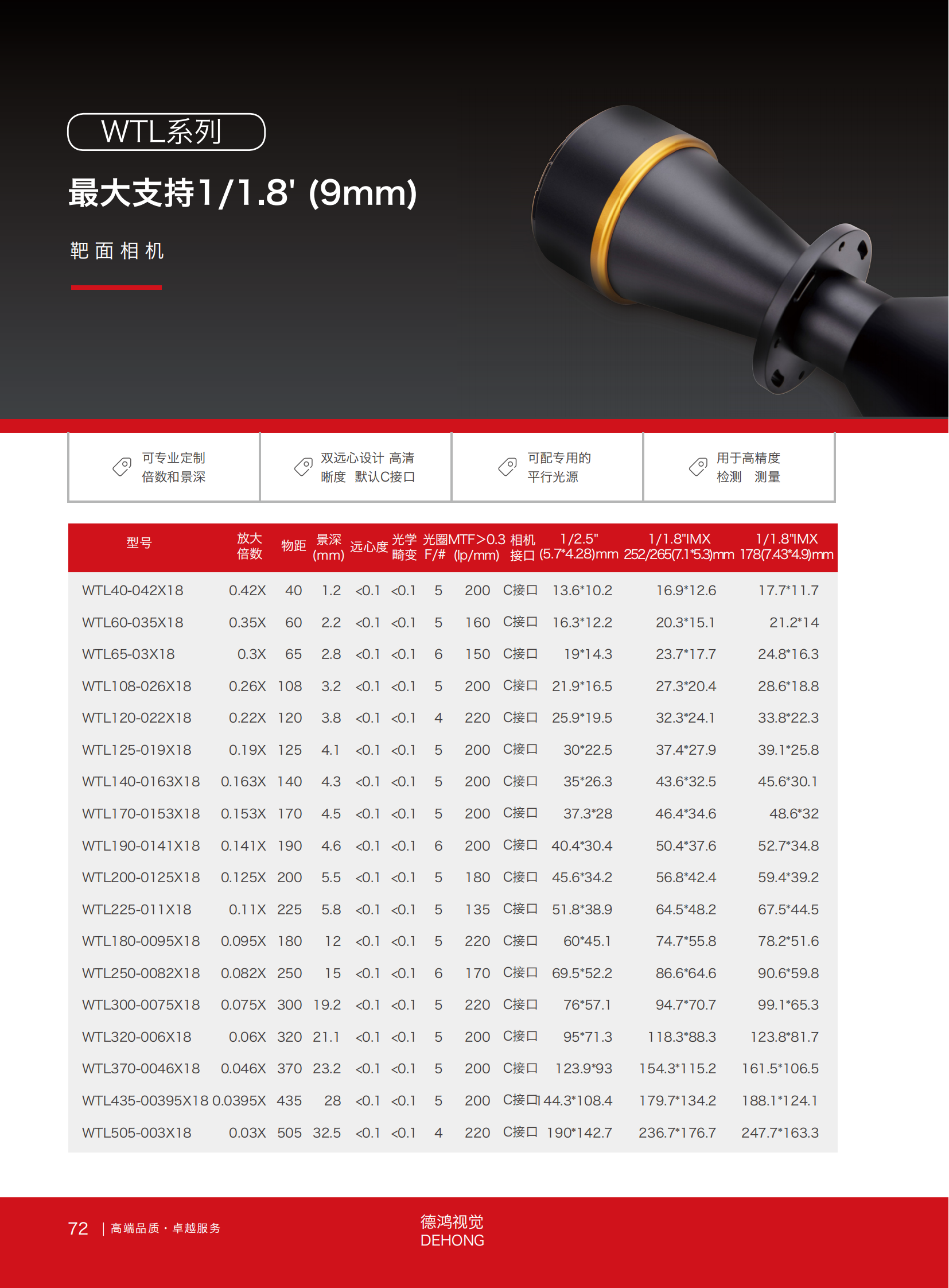

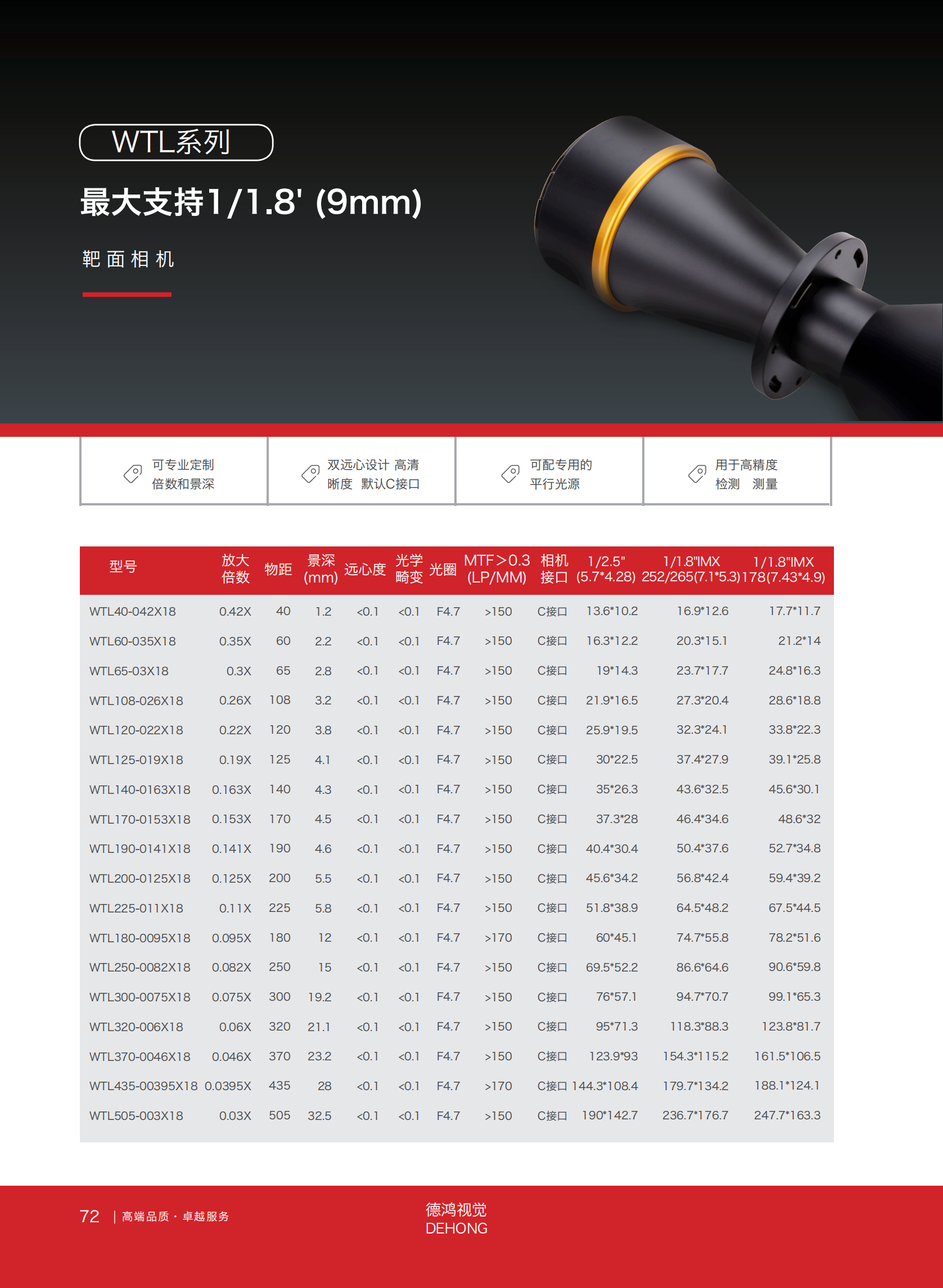

| 型号 | 放大倍数 | 物距 | 景深 （mm) | 远心度 | 光圈 (F) | 分辨率 （um) | 光学畸变 | MTF>0.3 (LP/MM) | 1/2.5" (5.7*4.28) | 1/1.8"IMX252/265 (7.1*5.3) | 1/1.8"IMX178 (7.43*4.9) |
| WTL40-042X18 | 0.42X | 40 | 1.2 | <0.1 | F4.7 | 7.5 | <0.1 | >150 | 13.6*10.2 | 16.9*12.6 | 17.7*11.7 |
| WTL60-035X18 | 0.35X | 60 | 2.2 | <0.1 | F4.7 | 9.0 | <0.1 | >150 | 16.3*12.2 | 20.3*15.1 | 21.2*14 |
| WTL65-03X18 | 0.3X | 65 | 2.8 | <0.1 | F4.7 | 10.5 | <0.1 | >150 | 19*14.3 | 23.7*17.7 | 24.8*16.3 |
| WTL108-026X18 | 0.26X | 108 | 3.2 | <0.1 | F4.7 | 12.1 | <0.1 | >150 | 21.9*16.5 | 27.3*20.4 | 28.6*18.8 |
| WTL120-022X18 | 0.22X | 120 | 3.8 | <0.1 | F4.7 | 14.3 | <0.1 | >150 | 25.9*19.5 | 32.3*24.1 | 33.8*22.3 |
| WTL125-019X18 | 0.19X | 125 | 4.1 | <0.1 | F4.7 | 16.6 | <0.1 | >150 | 30*22.5 | 37.4*27.9 | 39.1*25.8 |
| WTL140-0163X18 | 0.163X | 140 | 4.3 | <0.1 | F4.7 | 19.3 | <0.1 | >150 | 35*26.3 | 43.6*32.5 | 45.6*30.1 |
| WTL170-0153X18 | 0.153X | 170 | 4.5 | <0.1 | F4.7 | 20.6 | <0.1 | >150 | 37.3*28 | 46.4*34.6 | 48.6*32 |
| WTL190-0141X18 | 0.141X | 190 | 4.6 | <0.1 | F4.7 | 22.4 | <0.1 | >150 | 40.4*30.4 | 50.4*37.6 | 52.7*34.8 |
| WTL200-0125X18 | 0.125X | 200 | 5.5 | <0.1 | F4.7 | 25.2 | <0.1 | >150 | 45.6*34.2 | 56.8*42.4 | 59.4*39.2 |
| WTL225-011X18 | 0.11X | 225 | 5.8 | <0.1 | F4.7 | 28.7 | <0.1 | >150 | 51.8*38.9 | 64.5*48.2 | 67.5*44.5 |
| WTL180-0095X18 | 0.095X | 180 | 12 | <0.1 | F4.7 | 33.9 | <0.1 | >170 | 60*45.1 | 74.7*55.8 | 78.2*51.6 |
| WTL250-0082X18 | 0.082X | 250 | 15 | <0.1 | F4.7 | 38.5 | <0.1 | >150 | 69.5*52.2 | 86.6*64.6 | 90.6*59.8 |
| WTL300-0075X18 | 0.075X | 300 | 19.2 | <0.1 | F4.7 | 42.0 | <0.1 | >150 | 76*57.1 | 94.7*70.7 | 99.1*65.3 |
| WTL320-006X18 | 0.06X | 320 | 21.1 | <0.1 | F4.7 | 52.6 | <0.1 | >150 | 95*71.3 | 118.3*88.3 | 123.8*81.7 |
| WTL370-0046X18 | 0.046X | 370 | 23.2 | <0.1 | F4.7 | 68.6 | <0.1 | >150 | 123.9*93 | 154.3*115.2 | 161.5*106.5 |
| WTL435-00395X18 | 0.0395X | 435 | 28 | <0.1 | F4.7 | 81.5 | <0.1 | >170 | 144.3*108.4 | 179.7*134.2 | 188.1*124.1 |
| WTL505-003X18 | 0.03X | 505 | 32.5 | <0.1 | F4.7 | 105.1 | <0.1 | >150 | 190*142.7 | 236.7*176.7 | 247.7*163.3 |
