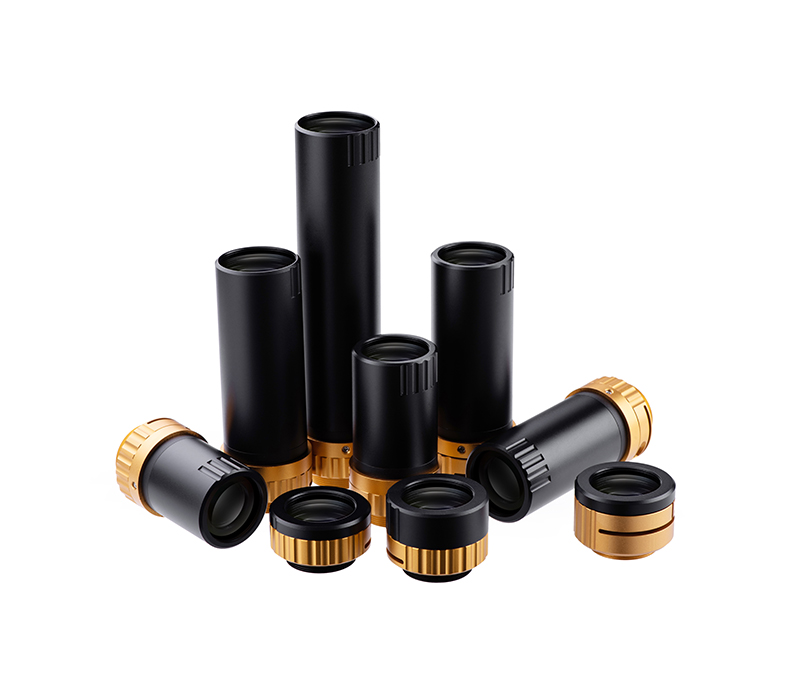

CHL系列镜头 CHD 系列镜头

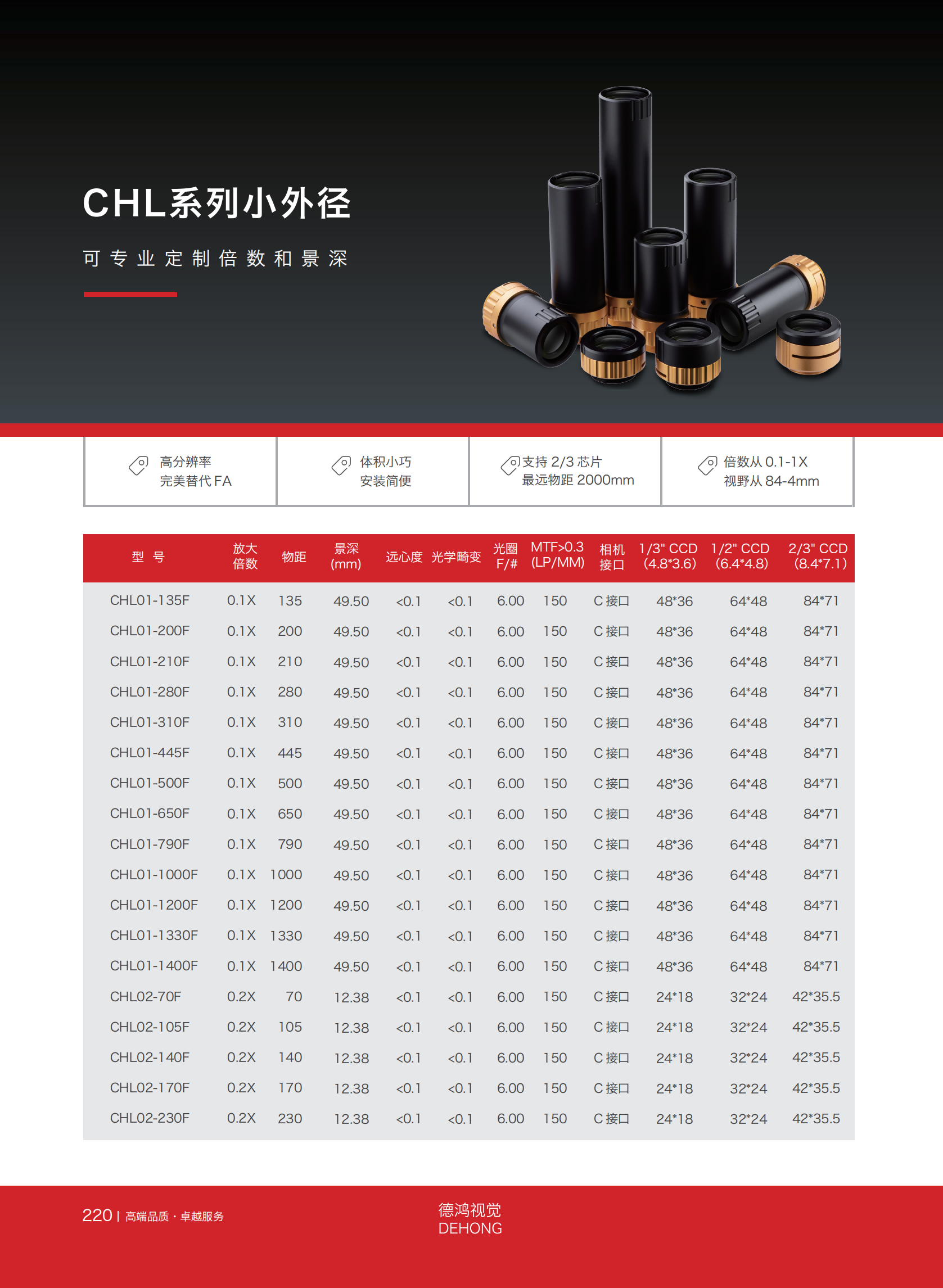

| 型号 | 放大倍数 | 物距 | 景深 (mm) | 远心度 | 光学畸变 | 分辨率 (um) | 光圈F/# | MTF30 （lp/mm) | 1/3"CCD (4.8*3.6) | 1/2"CCD (6.4*4.8) | 2/3"CCD (8.4*7.1) |
| CHL01-135F | 0.1X | 135 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-200F | 0.1X | 200 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-210F | 0.1X | 210 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-280F | 0.1X | 280 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-310F | 0.1X | 310 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-445F | 0.1X | 445 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-500F | 0.1X | 500 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-650F | 0.1X | 650 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-790F | 0.1X | 790 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-1000F | 0.1X | 1000 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-1200F | 0.1X | 1200 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-1330F | 0.1X | 1330 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL01-1400F | 0.1X | 1400 | 49.50 | <0.1 | <0.1 | 40.3 | 6.00 | 150 | 48*36 | 64*48 | 84*71 |
| CHL02-70F | 0.2X | 70 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-105F | 0.2X | 105 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-140F | 0.2X | 140 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-170F | 0.2X | 170 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-230F | 0.2X | 230 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |

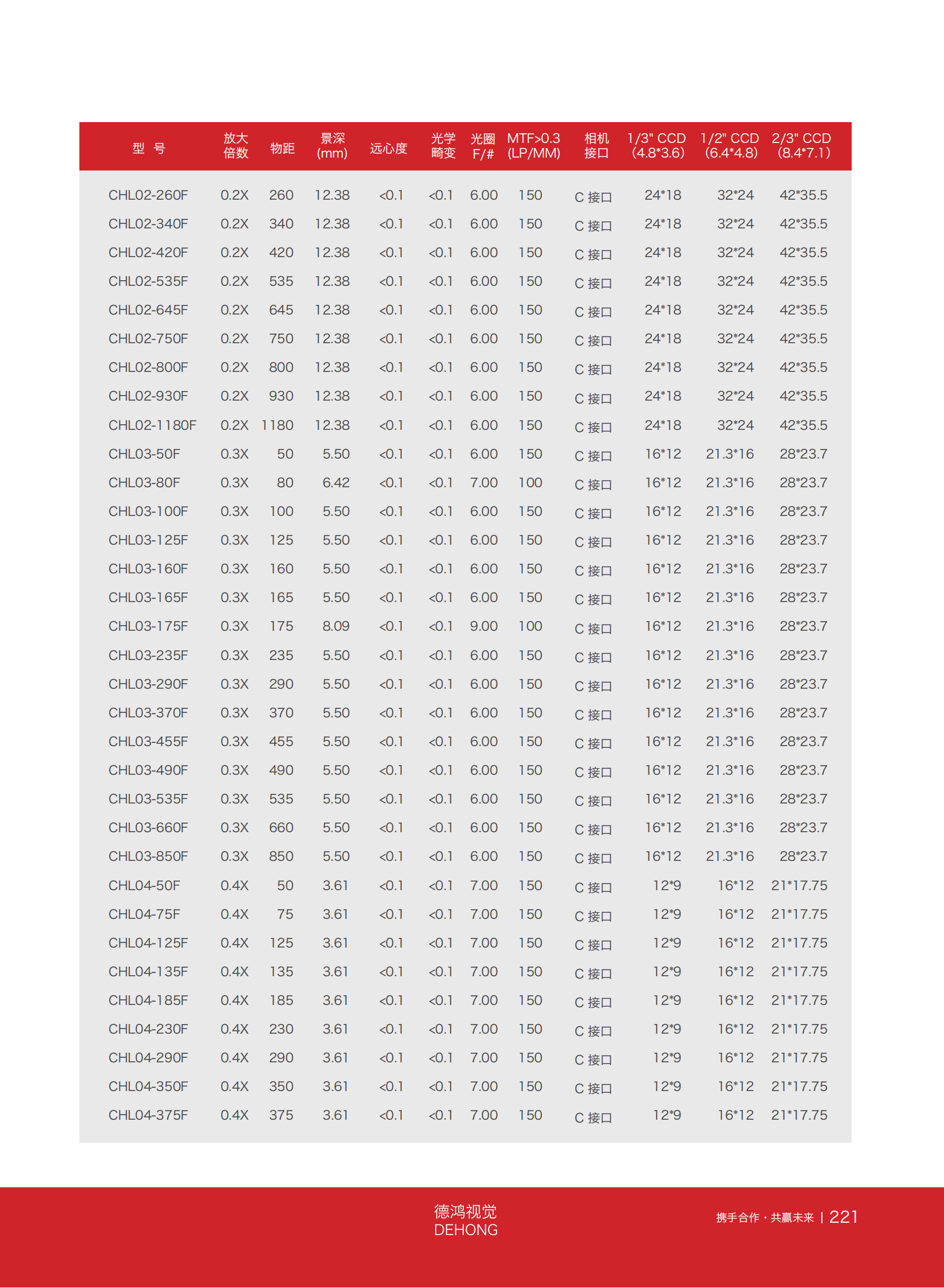

| CHL02-260F | 0.2X | 260 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-340F | 0.2X | 340 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-420F | 0.2X | 420 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-535F | 0.2X | 535 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-645F | 0.2X | 645 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-750F | 0.2X | 750 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-800F | 0.2X | 800 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-930F | 0.2X | 930 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL02-1180F | 0.2X | 1180 | 12.38 | <0.1 | <0.1 | 20.1 | 6.00 | 150 | 24*18 | 32*24 | 42*35.5 |
| CHL03-50F | 0.3X | 50 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-80F | 0.3X | 80 | 6.42 | <0.1 | <0.1 | 15.7 | 7.00 | 100 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-100F | 0.3X | 100 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-125F | 0.3X | 125 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-160F | 0.3X | 160 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-165F | 0.3X | 165 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-175F | 0.3X | 175 | 8.09 | <0.1 | <0.1 | 19.7 | 8.82 | 100 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-235F | 0.3X | 235 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-290F | 0.3X | 290 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-370F | 0.3X | 370 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-455F | 0.3X | 455 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-490F | 0.3X | 490 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-535F | 0.3X | 535 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-660F | 0.3X | 660 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL03-850F | 0.3X | 850 | 5.50 | <0.1 | <0.1 | 13.4 | 6.00 | 150 | 16*12 | 21.3*16 | 28*23.7 |
| CHL04-50F | 0.4X | 50 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHL04-75F | 0.4X | 75 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHL04-125F | 0.4X | 125 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHL04-135F | 0.4X | 135 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHL04-185F | 0.4X | 185 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHL04-230F | 0.4X | 230 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHL04-290F | 0.4X | 290 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHL04-350F | 0.4X | 350 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHL04-375F | 0.4X | 375 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |

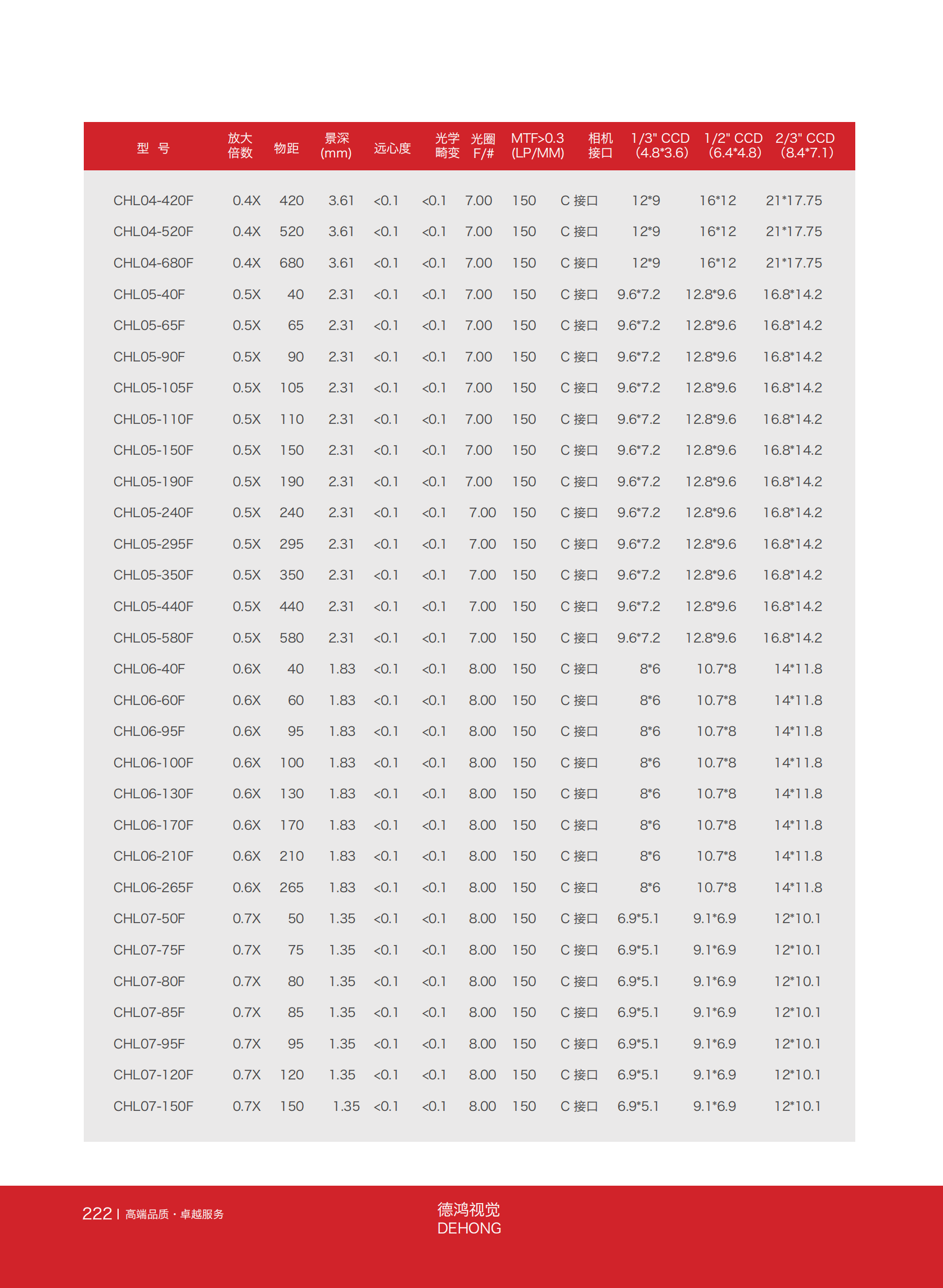

| CHL04-420F | 0.4X | 420 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHL04-520F | 0.4X | 520 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHLO4-680F | 0.4X | 680 | 3.61 | <0.1 | <0.1 | 11.7 | 7.00 | 150 | 12*9 | 16*12 | 21*17.75 |
| CHLO5-40F | 0.5X | 40 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-65F | 0.5X | 65 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-90F | 0.5X | 90 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-105F | 0.5X | 105 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-110F | 0.5X | 110 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-150F | 0.5X | 150 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-190F | 0.5X | 190 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-240F | 0.5X | 240 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-295F | 0.5X | 295 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-350F | 0.5X | 350 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-440F | 0.5X | 440 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL05-580F | 0.5X | 580 | 2.31 | <0.1 | <0.1 | 9.4 | 7.00 | 150 | 9.6*7.2 | 12.8*9.6 | 16.8*14.2 |
| CHL06-40F | 0.6X | 40 | 1.83 | <0.1 | <0.1 | 8.9 | 8.00 | 150 | 8*6 | 10.7*8 | 14*11.8 |
| CHL06-60F | 0.6X | 60 | 1.83 | <0.1 | <0.1 | 8.9 | 8.00 | 150 | 8*6 | 10.7*8 | 14*11.8 |
| CHL06-95F | 0.6X | 95 | 1.83 | <0.1 | <0.1 | 8.9 | 8.00 | 150 | 8*6 | 10.7*8 | 14*11.8 |
| CHL06-100F | 0.6X | 100 | 1.83 | <0.1 | <0.1 | 8.9 | 8.00 | 150 | 8*6 | 10.7*8 | 14*11.8 |
| CHL06-130F | 0.6X | 130 | 1.83 | <0.1 | <0.1 | 8.9 | 8.00 | 150 | 8*6 | 10.7*8 | 14*11.8 |
| CHL06-170F | 0.6X | 170 | 1.83 | <0.1 | <0.1 | 8.9 | 8.00 | 150 | 8*6 | 10.7*8 | 14*11.8 |
| CHLO6-210F | 0.6X | 210 | 1.83 | <0.1 | <0.1 | 8.9 | 8.00 | 150 | 8*6 | 10.7*8 | 14*11.8 |
| CHL06-265F | 0.6X | 265 | 1.83 | <0.1 | <0.1 | 8.9 | 8.00 | 150 | 8*6 | 10.7*8 | 14*11.8 |
| CHL07-50F | 0.7X | 50 | 1.35 | <0.1 | <0.1 | 7.7 | 8.00 | 150 | 6.9*5.1 | 9.1*6.9 | 12*10.1 |
| CHL07-75F | 0.7X | 75 | 1.35 | <0.1 | <0.1 | 7.7 | 8.00 | 150 | 6.9*5.1 | 9.1*6.9 | 12*10.1 |
| CHLO7-80F | 0.7X | 80 | 1.35 | <0.1 | <0.1 | 7.7 | 8.00 | 150 | 6.9*5.1 | 9.1*6.9 | 12*10.1 |
| CHL07-85F | 0.7X | 85 | 1.35 | <0.1 | <0.1 | 7.7 | 8.00 | 150 | 6.9*5.1 | 9.1*6.9 | 12*10.1 |
| CHL07-95F | 0.7X | 95 | 1.35 | <0.1 | <0.1 | 7.7 | 8.00 | 150 | 6.9*5.1 | 9.1*6.9 | 12*10.1 |
| CHL07-120F | 0.7X | 120 | 1.35 | <0.1 | <0.1 | 7.7 | 8.00 | 150 | 6.9*5.1 | 9.1*6.9 | 12*10.1 |
| CHL07-150F | 0.7X | 150 | 1.35 | <0.1 | <0.1 | 7.7 | 8.00 | 150 | 6.9*5.1 | 9.1*6.9 | 12*10.1 |

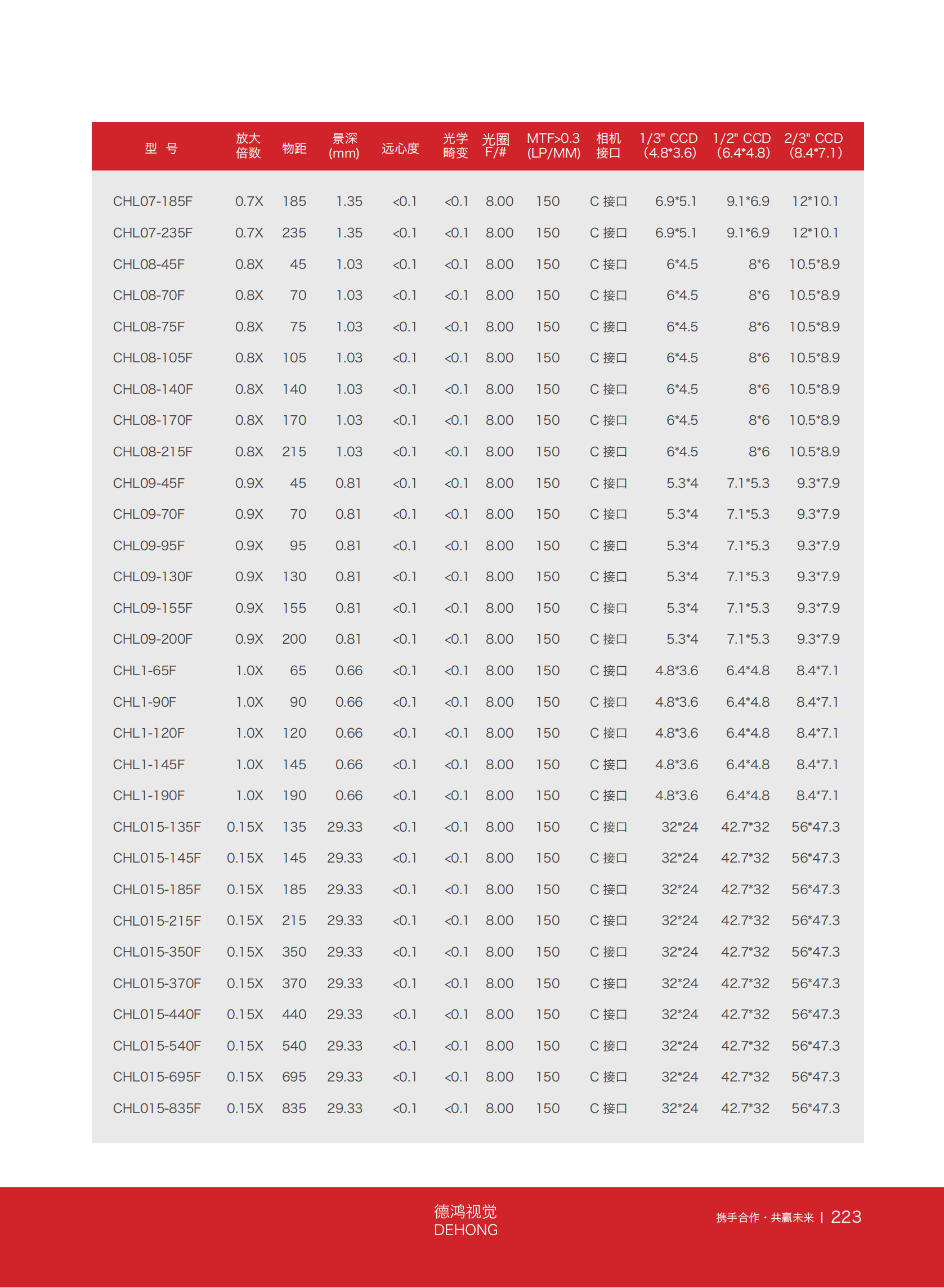

| CHL07-185F | 0.7X | 185 | 1.35 | <0.1 | <0.1 | 7.7 | 8.00 | 150 | 6.9*5.1 | 9.1*6.9 | 12*10.1 |
| CHL07-235F | 0.7X | 235 | 1.35 | <0.1 | <0.1 | 7.7 | 8.00 | 150 | 6.9*5.1 | 9.1*6.9 | 12*10.1 |
| CHL08-45F | 0.8X | 45 | 1.03 | <0.1 | <0.1 | 6.7 | 8.00 | 150 | 6*4.5 | 8*6 | 10.5*8.9 |
| CHL08-70F | 0.8X | 70 | 1.03 | <0.1 | <0.1 | 6.7 | 8.00 | 150 | 6*4.5 | 8*6 | 10.5*8.9 |
| CHL08-75F | 0.8X | 75 | 1.03 | <0.1 | <0.1 | 6.7 | 8.00 | 150 | 6*4.5 | 8*6 | 10.5*8.9 |
| CHL08-105F | 0.8X | 105 | 1.03 | <0.1 | <0.1 | 6.7 | 8.00 | 150 | 6*4.5 | 8*6 | 10.5*8.9 |
| CHL08-140F | 0.8X | 140 | 1.03 | <0.1 | <0.1 | 6.7 | 8.00 | 150 | 6*4.5 | 8*6 | 10.5*8.9 |
| CHL08-170F | 0.8X | 170 | 1.03 | <0.1 | <0.1 | 6.7 | 8.00 | 150 | 6*4.5 | 8*6 | 10.5*8.9 |
| CHL08-215F | 0.8X | 215 | 1.03 | <0.1 | <0.1 | 6.7 | 8.00 | 150 | 6*4.5 | 8*6 | 10.5*8.9 |
| CHL09-45F | 0.9X | 45 | 0.81 | <0.1 | <0.1 | 6.0 | 8.00 | 150 | 5.3*4 | 7.1*5.3 | 9.3*7.9 |
| CHL09-70F | 0.9X | 70 | 0.81 | <0.1 | <0.1 | 6.0 | 8.00 | 150 | 5.3*4 | 7.1*5.3 | 9.3*7.9 |
| CHL09-95F | 0.9X | 95 | 0.81 | <0.1 | <0.1 | 6.0 | 8.00 | 150 | 5.3*4 | 7.1*5.3 | 9.3*7.9 |
| CHL09-130F | 0.9X | 130 | 0.81 | <0.1 | <0.1 | 6.0 | 8.00 | 150 | 5.3*4 | 7.1*5.3 | 9.3*7.9 |
| CHL09-155F | 0.9X | 155 | 0.81 | <0.1 | <0.1 | 6.0 | 8.00 | 150 | 5.3*4 | 7.1*5.3 | 9.3*7.9 |
| CHL09-200F | 0.9X | 200 | 0.81 | <0.1 | <0.1 | 6.0 | 8.00 | 150 | 5.3*4 | 7.1*5.3 | 9.3*7.9 |
| CHL1-65F | 1.0X | 65 | 0.66 | <0.1 | <0.1 | 5.4 | 8.00 | 150 | 4.8*3.6 | 6.4*4.8 | 8.4*7.1 |
| CHL1-90F | 1.0X | 90 | 0.66 | <0.1 | <0.1 | 5.4 | 8.00 | 150 | 4.8*3.6 | 6.4*4.8 | 8.4*7.1 |
| CHL1-120F | 1.0X | 120 | 0.66 | <0.1 | <0.1 | 5.4 | 8.00 | 150 | 4.8*3.6 | 6.4*4.8 | 8.4*7.1 |
| CHL1-145F | 1.0X | 145 | 0.66 | <0.1 | <0.1 | 5.4 | 8.00 | 150 | 4.8*3.6 | 6.4*4.8 | 8.4*7.1 |
| CHL1-190F | 1.0X | 190 | 0.66 | <0.1 | <0.1 | 5.4 | 8.00 | 150 | 4.8*3.6 | 6.4*4.8 | 8.4*7.1 |
| CHL015-135F | 0.15X | 135 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |
| CHL015-145F | 0.15X | 145 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |
| CHL015-185F | 0.15X | 185 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |
| CHL015-215F | 0.15X | 215 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |
| CHL015-350F | 0.15X | 350 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |
| CHL015-370F | 0.15X | 370 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |
| CHLO15-440F | 0.15X | 440 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |
| CHL015-540F | 0.15X | 540 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |
| CHL015-695F | 0.15X | 695 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |
| CHL015-835F | 0.15X | 835 | 29.33 | <0.1 | <0.1 | 35.8 | 8.00 | 150 | 32*24 | 42.7*32 | 56*47.3 |

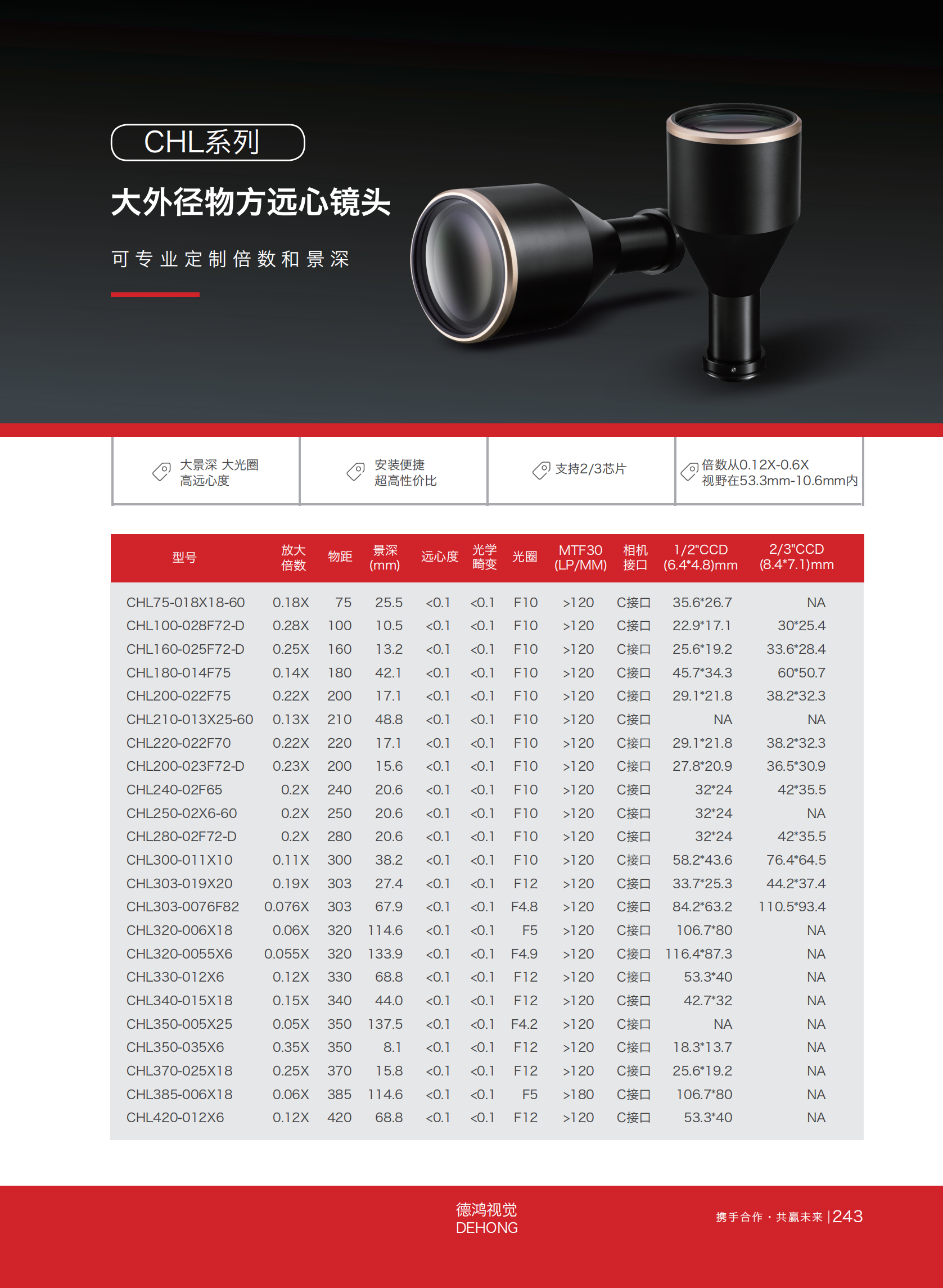

| 型号 | 放大倍数 | 物距 | 景深 (mm) | 远心度 | 光学畸变 | 分辨率 (um) | 光圈 F/# | MTF30 （lp/mm) | 1/2"CCD (6.4*4.8)mm | 2/3"CCD (8.4*7.1)mm |
| CHL75-018X18-60 | 0.18X | 75 | 25.5 | <0.1 | <0.1 | 37.3 | F10 | >120 | 35.6*26.7 | 46.7*39.4 |
| CHL100-028F72-D | 0.28X | 100 | 10.5 | <0.1 | <0.1 | 24.0 | F10 | >120 | 22.9*17.1 | 30*25.4 |
| CHL160-025F72-D | 0.25X | 160 | 13.2 | <0.1 | <0.1 | 26.8 | F10 | >120 | 25.6*19.2 | 33.6*28.4 |
| CHL180-014F75 | 0.14X | 180 | 42.1 | <0.1 | <0.1 | 47.9 | F10 | >120 | 45.7*34.3 | 60*50.7 |
| CHL200-022F75 | 0.22X | 200 | 17.1 | <0.1 | <0.1 | 30.5 | F10 | >120 | 29.1*21.8 | 38.2*32.3 |
| CHL210-013X25-60 | 0.13X | 210 | 48.8 | <0.1 | <0.1 | 51.6 | F10 | >120 | 49.2*36.9 | 64.6*54.6 |
| CHL220-022F70 | 0.22X | 220 | 17.1 | <0.1 | <0.1 | 30.5 | F10 | >120 | 29.1*21.8 | 38.2*32.3 |
| CHL200-023F72-D | 0.23X | 200 | 15.6 | <0.1 | <0.1 | 29.2 | F10 | >120 | 27.8*20.9 | 36.5*30.9 |
| CHL240-02F65 | 0.2X | 240 | 20.6 | <0.1 | <0.1 | 33.6 | F10 | >120 | 32*24 | 42*35.5 |
| CHL250-02X6-60 | 0.2X | 250 | 20.6 | <0.1 | <0.1 | 33.6 | F10 | >120 | 32*24 | 42*35.5 |
| CHL280-02F72-D | 0.2X | 280 | 20.6 | <0.1 | <0.1 | 33.6 | F10 | >120 | 32*24 | 42*35.5 |
| CHL300-011X10 | 0.11X | 300 | 38.2 | <0.1 | <0.1 | 61.0 | F10 | >120 | 58.2*43.6 | 76.4*64.5 |
| CHL303-019X20 | 0.19X | 303 | 27.4 | <0.1 | <0.1 | 42.4 | F12 | >120 | 33.7*25.3 | 44.2*37.4 |
| CHL303-0076F82 | 0.076X | 303 | 67.9 | <0.1 | <0.1 | 41.9 | F4.8 | >120 | 84.2*63.2 | 110.5*93.4 |
| CHL320-006X18 | 0.06X | 320 | 114.6 | <0.1 | <0.1 | 55.9 | F5 | >120 | 106.7*80 | 140*118.3 |
| CHL320-0055X6 | 0.055X | 320 | 133.9 | <0.1 | <0.1 | 59.9 | F4.9 | >120 | 116.4*87.3 | 152.7*129.1 |
| CHL330-012X6 | 0.12X | 330 | 68.8 | <0.1 | <0.1 | 67.1 | F12 | >120 | 53.3*40 | 70*59.2 |
| CHL340-015X18 | 0.15X | 340 | 44.0 | <0.1 | <0.1 | 53.7 | F12 | >120 | 42.7*32 | 56*47.3 |
| CHL350-005X25 | 0.05X | 350 | 137.5 | <0.1 | <0.1 | 55.9 | F4.2 | >120 | NA | NA |
| CHL350-035X6 | 0.35X | 350 | 8.1 | <0.1 | <0.1 | 23.0 | F12 | >120 | 18.3*13.7 | 24*20.3 |
| CHL370-025X18 | 0.25X | 370 | 15.8 | <0.1 | <0.1 | 32.2 | F12 | >120 | 25.6*19.2 | 33.6*28.4 |
| CHL385-006X18 | 0.06X | 385 | 114.6 | <0.1 | <0.1 | 55.9 | F5 | >180 | 106.7*80 | 140*118.3 |
| CHL420-012X6 | 0.12X | 420 | 68.8 | <0.1 | <0.1 | 67.1 | F12 | >120 | 53.3*40 | 70*59.2 |

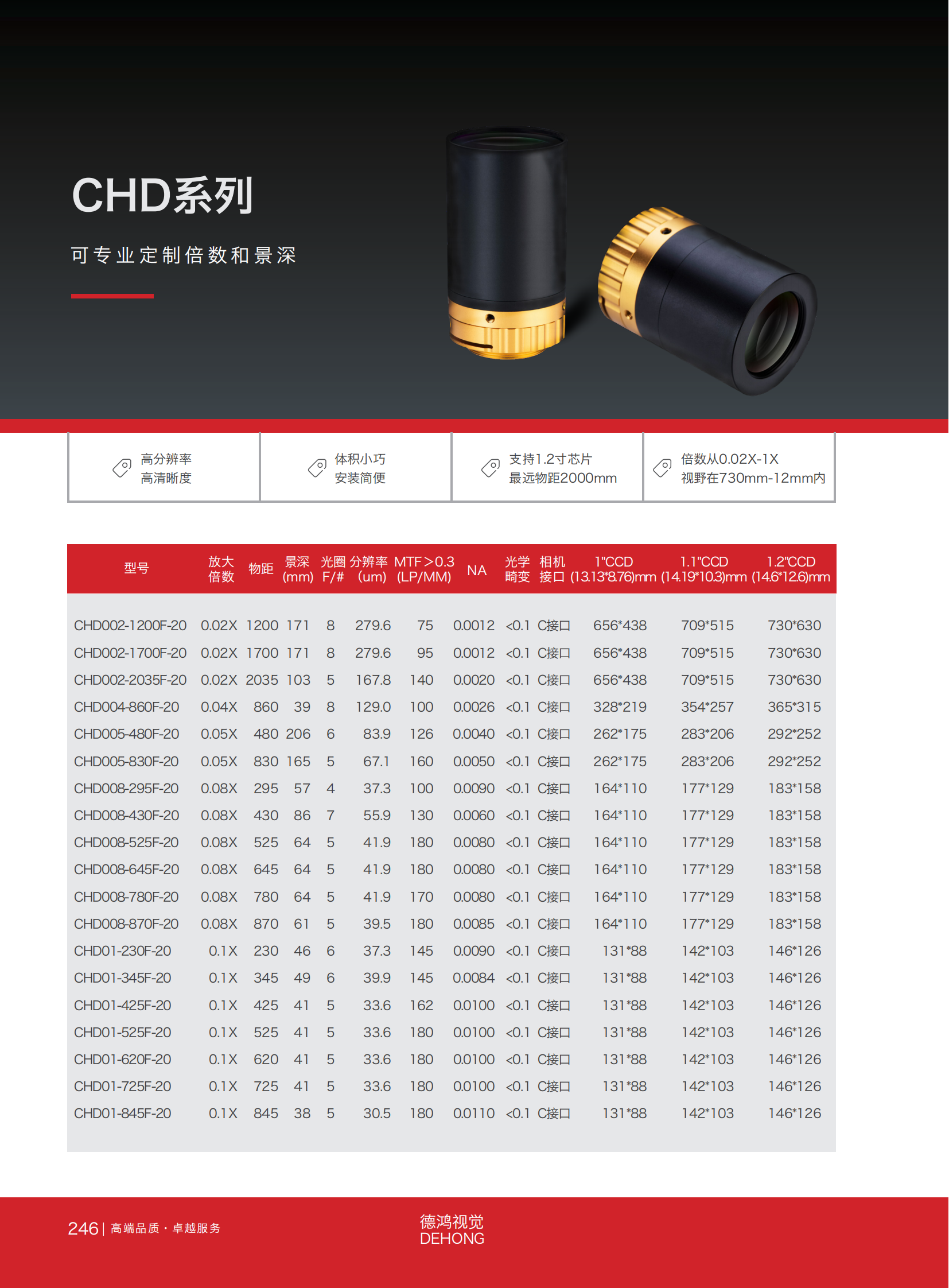

| 型号 | 放大倍数 | 物距 | 景深 DoF(mm) | 远心度 | 光学畸变 | 分辨率（um) | 光圈 F/# | MTF30（lp/mm) | 1"CCD (13.13*8.76)mm | 1.1"CCD (14.19*10.3)mm | 1.2"CCD (14.6*12.6)mm |
| CHD002-1200F-20 | 0.02X | 1200 | 171 | <0.1 | <0.1 | 279.6 | 8 | 75 | 656*438 | 709*515 | 730*630 |
| CHD002-1700F-20 | 0.02X | 1700 | 171 | <0.1 | <0.1 | 279.6 | 8 | 95 | 656*438 | 709*515 | 730*630 |
| CHD002-2035F-20 | 0.02X | 2035 | 103 | <0.1 | <0.1 | 167.8 | 5 | 140 | 656*438 | 709*515 | 730*630 |
| CHD004-860F-20 | 0.04X | 860 | 39 | <0.1 | <0.1 | 129.0 | 8 | 100 | 328*219 | 354*257 | 365*315 |
| CHD005-480F-20 | 0.05X | 480 | 206 | <0.1 | <0.1 | 83.9 | 6 | 126 | 262*175 | 283*206 | 292*252 |
| CHD005-830F-20 | 0.05X | 830 | 165 | <0.1 | <0.1 | 67.1 | 5 | 160 | 262*175 | 283*206 | 292*252 |
| CHD008-295F-20 | 0.08X | 295 | 57 | <0.1 | <0.1 | 37.3 | 4 | 100 | 164*110 | 177*129 | 183*158 |
| CHD008-430F-20 | 0.08X | 430 | 86 | <0.1 | <0.1 | 55.9 | 7 | 130 | 164*110 | 177*129 | 183*158 |
| CHD008-525F-20 | 0.08X | 525 | 64 | <0.1 | <0.1 | 41.9 | 5 | 180 | 164*110 | 177*129 | 183*158 |
| CHD008-645F-20 | 0.08X | 645 | 64 | <0.1 | <0.1 | 41.9 | 5 | 180 | 164*110 | 177*129 | 183*158 |
| CHD008-780F-20 | 0.08X | 780 | 64 | <0.1 | <0.1 | 41.9 | 5 | 170 | 164*110 | 177*129 | 183*158 |
| CHD008-870F-20 | 0.08X | 870 | 61 | <0.1 | <0.1 | 39.5 | 5 | 180 | 164*110 | 177*129 | 183*158 |
| CHD01-230F-20 | 0.1X | 230 | 46 | <0.1 | <0.1 | 37.3 | 6 | 145 | 131*88 | 142*103 | 146*126 |
| CHD01-345F-20 | 0.1X | 345 | 49 | <0.1 | <0.1 | 39.9 | 6 | 145 | 131*88 | 142*103 | 146*126 |
| CHD01-425F-20 | 0.1X | 425 | 41 | <0.1 | <0.1 | 33.6 | 5 | 162 | 131*88 | 142*103 | 146*126 |
| CHD01-525F-20 | 0.1X | 525 | 41 | <0.1 | <0.1 | 33.6 | 5 | 180 | 131*88 | 142*103 | 146*126 |
| CHD01-620F-20 | 0.1X | 620 | 41 | <0.1 | <0.1 | 33.6 | 5 | 180 | 131*88 | 142*103 | 146*126 |
| CHD01-725F-20 | 0.1X | 725 | 41 | <0.1 | <0.1 | 33.6 | 5 | 180 | 131*88 | 142*103 | 146*126 |
| CHD01-845F-20 | 0.1X | 845 | 38 | <0.1 | <0.1 | 30.5 | 5 | 180 | 131*88 | 142*103 | 146*126 |
| CHD01-925F-20 | 0.1X | 925 | 41 | <0.1 | <0.1 | 33.6 | 5 | 180 | 131*88 | 142*103 | 146*126 |
| CHD01-1025F-20 | 0.1X | 1025 | 41 | <0.1 | <0.1 | 33.6 | 5 | 180 | 131*88 | 142*103 | 146*126 |
| CHD02-110F-20 | 0.2X | 110 | 16 | <0.1 | <0.1 | 25.8 | 8 | 95 | 66*44 | 71*52 | 73*63 |
| CHD02-175F-20 | 0.2X | 175 | 17 | <0.1 | <0.1 | 28.0 | 8 | 90 | 66*44 | 71*52 | 73*63 |
| CHD02-220F-20 | 0.2X | 220 | 16 | <0.1 | <0.1 | 25.8 | 8 | 100 | 66*44 | 71*52 | 73*63 |
| CHD02-280F-20 | 0.2X | 280 | 16 | <0.1 | <0.1 | 25.8 | 8 | 80 | 66*44 | 71*52 | 73*63 |
| CHD02-320F-20 | 0.2X | 320 | 14 | <0.1 | <0.1 | 22.4 | 7 | 126 | 66*44 | 71*52 | 73*63 |
| CHD02-405F-20 | 0.2X | 405 | 13 | <0.1 | <0.1 | 21.0 | 6 | 145 | 66*44 | 71*52 | 73*63 |
| CHD02-440F-20 | 0.2X | 440 | 15 | <0.1 | <0.1 | 24.0 | 7 | 105 | 66*44 | 71*52 | 73*63 |
| CHD02-500F-20 | 0.2X | 500 | 12 | <0.1 | <0.1 | 19.7 | 6 | 145 | 66*44 | 71*52 | 73*63 |
| CHD02-535F-20 | 0.2X | 535 | 16 | <0.1 | <0.1 | 25.8 | 8 | 96 | 66*44 | 71*52 | 73*63 |
| CHD03-70F-20 | 0.3X | 70 | 9 | <0.1 | <0.1 | 22.4 | 10 | 72 | 44*29 | 47*34 | 49*42 |
| CHD03-120F-20 | 0.3X | 120 | 9 | <0.1 | <0.1 | 22.4 | 10 | 80 | 44*29 | 47*34 | 49*42 |
| CHD03-150F-20 | 0.3X | 150 | 9 | <0.1 | <0.1 | 21.0 | 9 | 90 | 44*29 | 47*34 | 49*42 |
| CHD03-190F-20 | 0.3X | 190 | 9 | <0.1 | <0.1 | 22.4 | 10 | 80 | 44*29 | 47*34 | 49*42 |
| CHD03-220F-20 | 0.3X | 220 | 8 | <0.1 | <0.1 | 19.7 | 9 | 95 | 44*29 | 47*34 | 49*42 |
| CHD03-285F-20 | 0.3X | 285 | 7 | <0.1 | <0.1 | 17.7 | 8 | 110 | 44*29 | 47*34 | 49*42 |
| CHD03-305F-20 | 0.3X | 305 | 9 | <0.1 | <0.1 | 20.97 | 9 | 90 | 44*29 | 47*34 | 49*42 |
| CHD03-360F-20 | 0.3X | 360 | 8 | <0.1 | <0.1 | 18.64 | 8 | 90 | 44*29 | 47*34 | 49*42 |
| CHD03-370F-20 | 0.3X | 370 | 8 | <0.1 | <0.1 | 19.74 | 9 | 90 | 44*29 | 47*34 | 49*42 |
| CHD04-95F-20 | 0.4X | 95 | 7 | <0.1 | <0.1 | 22.37 | 13 | 68 | 33*22 | 35*26 | 37*32 |
| CHD04-120F-20 | 0.4X | 120 | 6 | <0.1 | <0.1 | 18.64 | 11 | 75 | 33*22 | 35*26 | 37*32 |
| CHD04-150F-20 | 0.4X | 150 | 5 | <0.1 | <0.1 | 16.78 | 10 | 80 | 33*22 | 35*26 | 37*32 |
| CHD04-165F-20 | 0.4X | 165 | 5 | <0.1 | <0.1 | 17.66 | 11 | 80 | 33*22 | 35*26 | 37*32 |
| CHD04-185F-20 | 0.4X | 185 | 5 | <0.1 | <0.1 | 15.25 | 9 | 95 | 33*22 | 35*26 | 37*32 |
| CHD04-240F-20 | 0.4X | 240 | 5 | <0.1 | <0.1 | 17.66 | 11 | 85 | 33*22 | 35*26 | 37*32 |
| CHD04-290F-20 | 0.4X | 290 | 6 | <0.1 | <0.1 | 18.64 | 11 | 78 | 33*22 | 35*26 | 37*32 |
| CHD05-80F-20 | 0.5X | 80 | 5 | <0.1 | <0.1 | 18.64 | 14 | 60 | 26*18 | 28*21 | 29*25 |
| CHD05-100F-20 | 0.5X | 100 | 4 | <0.1 | <0.1 | 15.25 | 11 | 65 | 26*18 | 28*21 | 29*25 |
| CHD05-125F-20 | 0.5X | 125 | 4 | <0.1 | <0.1 | 16.78 | 13 | 75 | 26*18 | 28*21 | 29*25 |
| CHD05-135F-20 | 0.5X | 135 | 4 | <0.1 | <0.1 | 15.25 | 11 | 72 | 26*18 | 28*21 | 29*25 |
| CHD05-155F-20 | 0.5X | 155 | 4 | <0.1 | <0.1 | 15.25 | 11 | 90 | 26*18 | 28*21 | 29*25 |
| CHD05-165F-20 | 0.5X | 165 | 5 | <0.1 | <0.1 | 18.64 | 14 | 65 | 26*18 | 28*21 | 29*25 |
| CHD05-200F-20 | 0.5X | 200 | 4 | <0.1 | <0.1 | 16.78 | 13 | 75 | 26*18 | 28*21 | 29*25 |
| CHD05-245F-20 | 0.5X | 245 | 4 | <0.1 | <0.1 | 16.78 | 13 | 70 | 26*18 | 28*21 | 29*25 |
