超长物距 X31系

您的当前位置：首页 >> 产品展示 >> 高分辨率远心镜头(2/3)

超长物距 X31系

超长物距 X31系

所属分类：高分辨率远心镜头(2/3)
点击次数：
发布日期：2023/09/12
在线询价

详细介绍

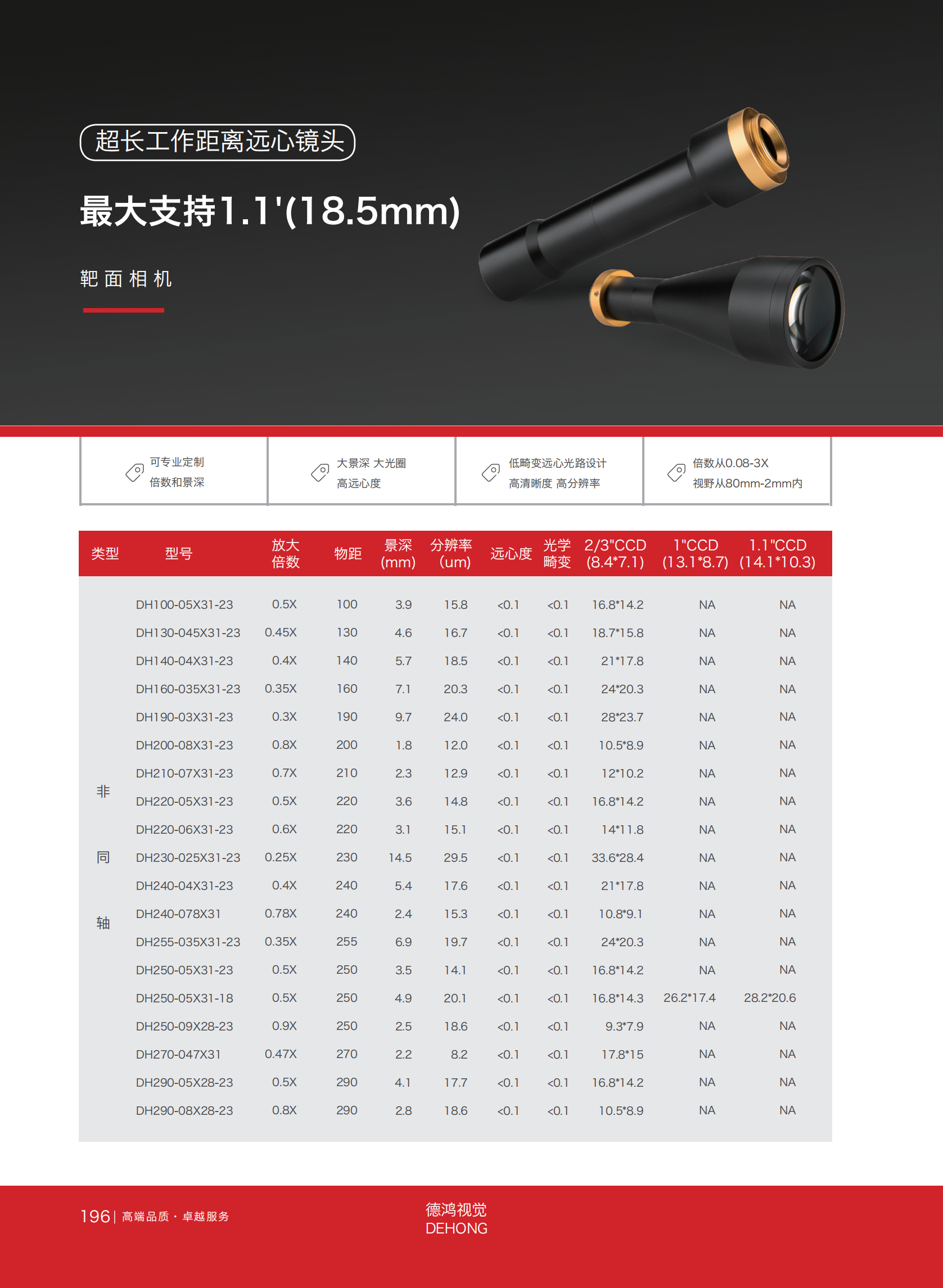

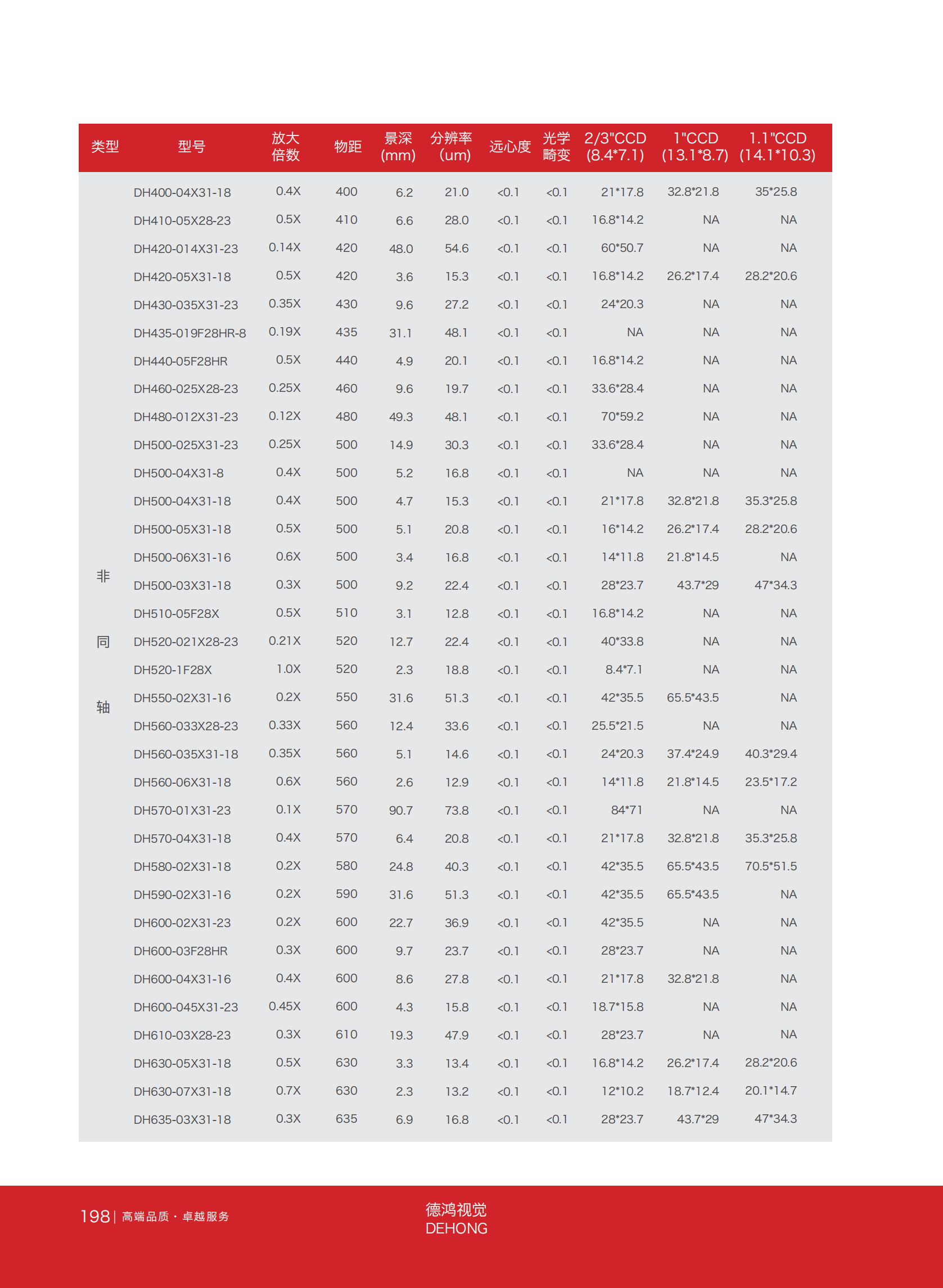

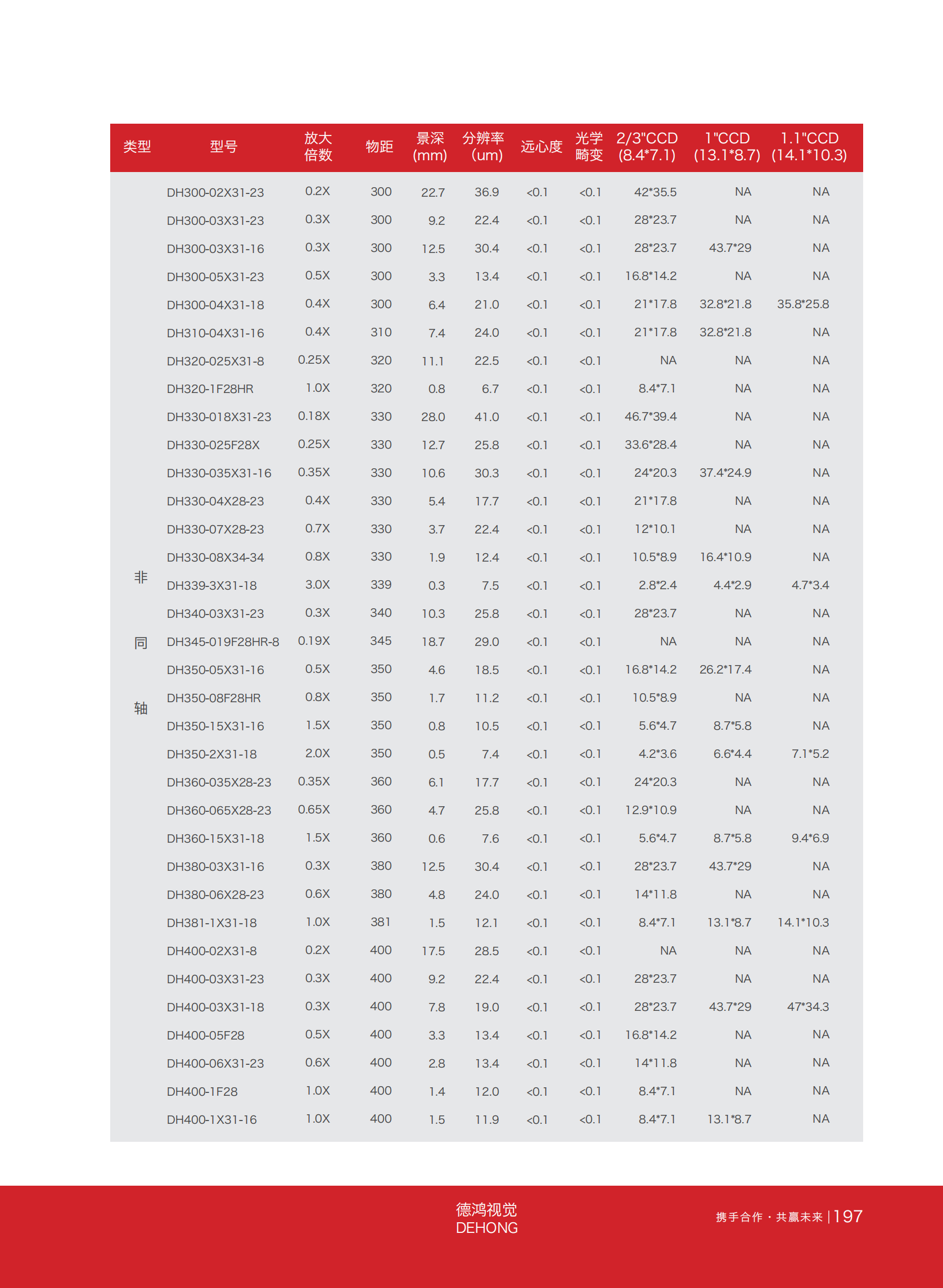

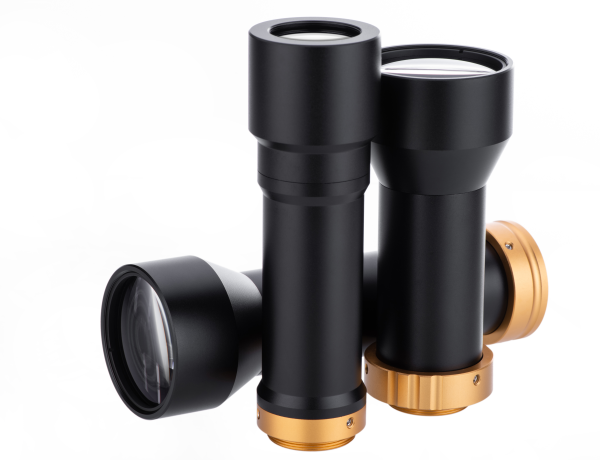

超长物距镜头

型号	放大倍数	物距	景深 (mm)	分辨率（um)	光圈（F)	远心度	光学畸变	2/3"CCD (8.4*7.1)	1"CCD (13.1*8.7)	1.1"CCD (14.1*10.3)
DH100-05X31-23	0.5X	100	3.9	15.8	11.8	<0.1	<0.1	16.8*14.2	NA	NA
DH130-045X31-23	0.45X	130	4.6	16.7	11.2	<0.1	<0.1	18.7*15.8	NA	NA
DH140-04X31-23	0.4X	140	5.7	18.5	11.0	<0.1	<0.1	21*17.8	NA	NA
DH160-035X31-23	0.35X	160	7.1	20.3	10.6	<0.1	<0.1	24*20.3	NA	NA
DH190-03X31-23	0.3X	190	9.7	24.0	10.6	<0.1	<0.1	28*23.7	NA	NA
DH200-08X31-23	0.8X	200	1.8	12.0	14.3	<0.1	<0.1	10.5*8.9	NA	NA
DH210-07X31-23	0.7X	210	2.3	12.9	13.5	<0.1	<0.1	12*10.2	NA	NA
DH220-05X31-23	0.5X	220	3.6	14.8	11.0	<0.1	<0.1	16.8*14.2	NA	NA
DH220-06X31-23	0.6X	220	3.1	15.1	13.5	<0.1	<0.1	14*11.8	NA	NA
DH230-025X31-23	0.25X	230	14.5	29.5	11.0	<0.1	<0.1	33.6*28.4	NA	NA
DH240-04X31-23	0.4X	240	5.4	17.6	10.5	<0.1	<0.1	21*17.8	NA	NA
DH240-078X31	0.78X	240	2.4	15.3	17.5	<0.1	<0.1	10.8*9.1	NA	NA
DH255-035X31-23	0.35X	255	6.9	19.7	10.3	<0.1	<0.1	24*20.3	NA	NA
DH250-05X31-23	0.5X	250	3.5	14.1	10.5	<0.1	<0.1	16.8*14.2	NA	NA
DH250-05X31-18	0.5X	250	4.9	20.1	15.0	<0.1	<0.1	16.8*14.3	26.2*17.4	28.2*20.6
DH250-09X28-23	0.9X	250	2.5	18.6	24.3	<0.1	<0.1	9.3*7.9	NA	NA
DH270-047X31	0.47X	270	2.2	8.2	5.8	<0.1	<0.1	17.8*15	NA	NA
DH290-05X28-23	0.5X	290	4.1	17.7	12.4	<0.1	<0.1	16.8*14.2	NA	NA
DH290-08X28-23	0.8X	290	2.8	18.6	21.6	<0.1	<0.1	10.5*8.9	NA	NA
DH300-02X31-23	0.2X	300	22.7	36.9	11.0	<0.1	<0.1	42*35.5	NA	NA
DH300-03X31-23	0.3X	300	9.2	22.4	10.0	<0.1	<0.1	28*23.7	NA	NA
DH300-03X31-16	0.3X	300	12.5	30.4	13.6	<0.1	<0.1	28*23.7	43.7*29	NA
DH300-05X30-23	0.5X	300	3.6	14.8	11.0	<0.1	<0.1	16.8*14.2	NA	NA
DH300-05X31-23	0.5X	300	3.3	13.4	10.0	<0.1	<0.1	16.8*14.2	NA	NA
DH300-04X31-18	0.4X	300	6.4	21.0	12.4	<0.1	<0.1	21*17.8	32.8*21.8	35.8*25.8
DH310-04X31-16	0.4X	310	7.4	24.0	14.3	<0.1	<0.1	21*17.8	32.8*21.8	NA
DH320-025X31-8	0.25X	320	11.1	22.5	8.4	<0.1	<0.1	NA	NA	NA
DH320-1F28HR	1.0X	320	0.8	6.7	10.0	<0.1	<0.1	8.4*7.1	NA	NA
DH330-018X31-23	0.18X	330	28.0	41.0	11.0	<0.1	<0.1	46.7*39.4	NA	NA
DH330-025F28X	0.25X	330	12.7	25.8	9.6	<0.1	<0.1	33.6*28.4	NA	NA
DH330-035X31-16	0.35X	330	10.6	30.3	15.8	<0.1	<0.1	24*20.3	37.4*24.9	NA
DH330-04X28-23	0.4X	330	5.4	17.7	10.5	<0.1	<0.1	21*17.8	NA	NA
DH330-07X28-23	0.7X	330	3.7	22.4	22.0	<0.1	<0.1	12*10.1	NA	NA
DH330-08X34-34	0.8X	330	1.9	12.4	14.7	<0.1	<0.1	10.5*8.9	16.4*10.9	NA
DH339-3X31-18	3.0X	339	0.3	7.5	31.0	<0.1	<0.1	2.8*2.4	4.4*2.9	4.7*3.4
DH340-03X31-23	0.3X	340	10.3	25.8	11.2	<0.1	<0.1	28*23.7	NA	NA
DH345-019F28HR-8	0.19X	345	18.7	29.0	8.2	<0.1	<0.1	NA	NA	NA
DH350-05X31-16	0.5X	350	4.6	18.5	13.8	<0.1	<0.1	16.8*14.2	26.2*17.4	NA
DH350-08F28HR	0.8X	350	1.7	11.2	13.3	<0.1	<0.1	10.5*8.9	NA	NA
DH350-15X31-16	1.5X	350	0.8	10.5	23.0	<0.1	<0.1	5.6*4.7	8.7*5.8	NA
DH350-2X31-18	2.0X	350	0.5	7.4	22.0	<0.1	<0.1	4.2*3.6	6.6*4.4	7.1*5.2
DH360-035X28-23	0.35X	360	6.1	17.7	9.1	<0.1	<0.1	24*20.3	NA	NA
DH360-065X28-23	0.65X	360	4.7	25.8	24.0	<0.1	<0.1	12.9*10.9	NA	NA
DH360-15X31-18	1.5X	360	0.6	7.6	17.0	<0.1	<0.1	5.6*4.7	8.7*5.8	9.4*6.9
DH380-03X31-16	0.3X	380	12.5	30.4	13.6	<0.1	<0.1	28*23.7	43.7*29	NA
DH380-06X28-23	0.6X	380	4.8	24.0	21.0	<0.1	<0.1	14*11.8	NA	NA
DH381-1X31-18	1.0X	381	1.5	12.1	18.0	<0.1	<0.1	8.4*7.1	13.1*8.7	14.1*10.3
DH400-02X31-8	0.2X	400	17.5	28.5	8.5	<0.1	<0.1	NA	NA	NA
DH400-03X31-23	0.3X	400	9.2	22.4	10.0	<0.1	<0.1	28*23.7	NA	NA
DH400-03X31-18	0.3X	400	7.8	19.0	8.5	<0.1	<0.1	28*23.7	43.7*29	47*34.3
DH400-05F28	0.5X	400	3.3	13.4	10.0	<0.1	<0.1	16.8*14.2	NA	NA
DH400-06X31-23	0.6X	400	2.8	13.4	12.0	<0.1	<0.1	14*11.8	NA	NA
DH400-1F28	1.0X	400	1.4	12.0	16.8	<0.1	<0.1	8.4*7.1	NA	NA
DH400-1X31-16	1.0X	400	1.5	11.9	17.8	<0.1	<0.1	8.4*7.1	13.1*8.7	NA
DH400-04X31-18	0.4X	400	6.2	21.0	12.0	<0.1	<0.1	21*17.8	32.8*21.8	35*25.8
DH410-05X28-23	0.5X	410	6.6	28.0	20.0	<0.1	<0.1	16.8*14.2	NA	NA
DH420-014X31-23	0.14X	420	48.0	54.6	11.4	<0.1	<0.1	60*50.7	NA	NA
DH420-05X31-18	0.5X	420	3.6	15.3	11.0	<0.1	<0.1	16.8*14.2	26.2*17.4	28.2*20.6
DH430-035X31-23	0.35X	430	9.6	27.2	14.2	<0.1	<0.1	24*20.3	NA	NA
DH435-019F28HR-8	0.19X	435	31.1	48.1	13.6	<0.1	<0.1	NA	NA	NA
DH440-05F28HR	0.5X	440	4.9	20.1	15.0	<0.1	<0.1	16.8*14.2	NA	NA
DH460-025X28-23	0.25X	460	9.6	19.7	7.3	<0.1	<0.1	33.6*28.4	NA	NA
DH480-012X31-23	0.12X	480	49.3	48.1	8.6	<0.1	<0.1	70*59.2	NA	NA
DH500-025X31-23	0.25X	500	14.9	30.3	11.3	<0.1	<0.1	33.6*28.4	NA	NA
DH500-04X31-8	0.4X	500	5.2	16.8	10.0	<0.1	<0.1	NA	NA	NA
DH500-04X31-18	0.4X	500	4.7	15.3	9.1	<0.1	<0.1	21*17.8	32.8*21.8	35.3*25.8
DH500-05X31-18	0.5X	500	5.1	20.8	15.5	<0.1	<0.1	16*14.2	26.2*17.4	28.2*20.6
DH500-06X31-16	0.6X	500	3.4	16.8	15.0	<0.1	<0.1	14*11.8	21.8*14.5	NA
DH500-03X31-18	0.3X	500	9.2	22.4	10.0	<0.1	<0.1	28*23.7	43.7*29	47*34.3
DH510-05F28X	0.5X	510	3.1	12.8	9.5	<0.1	<0.1	16.8*14.2	NA	NA
DH520-021X28-23	0.21X	520	12.7	22.4	6.8	<0.1	<0.1	40*33.8	NA	NA
DH520-1F28X	1.0X	520	2.3	18.8	28.0	<0.1	<0.1	8.4*7.1	NA	NA
DH550-02X31-16	0.2X	550	31.6	51.3	15.3	<0.1	<0.1	42*35.5	65.5*43.5	NA
DH560-033X28-23	0.33X	560	12.4	33.6	16.4	<0.1	<0.1	25.5*21.5	NA	NA
DH560-035X31-18	0.35X	560	5.1	14.6	7.6	<0.1	<0.1	24*20.3	37.4*24.9	40.3*29.4
DH560-06X31-18	0.6X	560	2.6	12.9	11.5	<0.1	<0.1	14*11.8	21.8*14.5	23.5*17.2
DH570-01X31-23	0.1X	570	90.7	73.8	11.0	<0.1	<0.1	84*71	NA	NA
DH570-04X31-18	0.4X	570	6.4	20.8	12.4	<0.1	<0.1	21*17.8	32.8*21.8	35.3*25.8
DH580-02X31-18	0.2X	580	24.8	40.3	12.0	<0.1	<0.1	42*35.5	65.5*43.5	70.5*51.5
DH590-02X31-16	0.2X	590	31.6	51.3	15.3	<0.1	<0.1	42*35.5	65.5*43.5	NA
DH600-02X31-23	0.2X	600	22.7	36.9	11.0	<0.1	<0.1	42*35.5	NA	NA
DH600-03F28HR	0.3X	600	9.7	23.7	10.6	<0.1	<0.1	28*23.7	NA	NA
DH600-04X31-16	0.4X	600	8.6	27.8	16.6	<0.1	<0.1	21*17.8	32.8*21.8	NA
DH600-045X31-23	0.45X	600	4.3	15.8	10.6	<0.1	<0.1	18.7*15.8	NA	NA
DH610-03X28-23	0.3X	610	19.3	47.9	21.0	<0.1	<0.1	28*23.7	NA	NA
DH630-05X31-18	0.5X	630	3.3	13.4	10.0	<0.1	<0.1	16.8*14.2	26.2*17.4	28.2*20.6
DH630-07X31-18	0.7X	630	2.3	13.2	13.8	<0.1	<0.1	12*10.2	18.7*12.4	20.1*14.7
DH635-03X31-18	0.3X	635	6.9	16.8	7.5	<0.1	<0.1	28*23.7	43.7*29	47*34.3
DH640-016X28-23	0.16X	640	24.2	30.5	7.5	<0.1	<0.1	52.5*44.4	NA	NA
DH650-014X30-16	0.14X	650	58.9	67.1	14.0	<0.1	<0.1	60*50.7	93.6*62.1	NA
DH650-018X31-23	0.18X	650	29.8	43.6	11.7	<0.1	<0.1	46.7*39.4	NA	NA
DH650-04X31-16	0.4X	650	6.0	19.6	11.7	<0.1	<0.1	21*17.8	32.8*21.8
DH670-06X31-18	0.6X	670	3.1	15.1	13.5	<0.1	<0.1	14*11.8	21.8*14.5	23.5*17.2
DH680-045X31-18	0.45X	680	4.1	14.9	10.0	<0.1	<0.1	18.7*15.8	29.1*19.3	31.3*22.9
DH685-02X31-23	0.2X	685	20.6	33.6	10.0	<0.1	<0.1	42*35.5	NA	NA
DH700-012X31-23	0.12X	700	68.8	67.1	12.0	<0.1	<0.1	70*59.2	NA	NA
DH700-016X31-23	0.16X	700	34.2	44.5	10.6	<0.1	<0.1	52.5*44.4	NA	NA
DH700-02X31-18	0.2X	700	20.6	33.6	10.0	<0.1	<0.1	42*35.5	65.5*43.5	70.5*51.5
DH700-03X31-18	0.3X	700	8.4	20.6	9.2	<0.1	<0.1	28*23.7	43.7*29	47*34.3
DH700-05F28-2.5	0.5X	700	6.6	26.8	20.0	<0.1	<0.1	16.8*14.2	NA	NA
DH700-05X31-18	0.5X	700	3.7	15.2	11.3	<0.1	<0.1	16.8*14.2	26.2*17.4	28.2*20.6
DH715-035X31-23	0.35X	715	6.7	19.7	10.0	<0.1	<0.1	24*20.3	NA	NA
DH730-05X31-16	0.5X	730	8.2	33.1	24.7	<0.1	<0.1	16.8*14.2	26.2*17.4	NA
DH740-025X31-18	0.25X	740	10.3	20.9	7.8	<0.1	<0.1	33.6*28.4	52.4*34.8	56.4*41.2
DH750-04X31-18	0.4X	750	4.9	15.9	9.5	<0.1	<0.1	21*17.8	32.8*21.8	35.3*25.8
DH750-05X31-18	0.5X	750	4.1	16.5	12.3	<0.1	<0.1	16.8*14.2	26.2*17.4	28.2*20.6
DH800-01X31-23	0.1X	800	82.5	67.1	10.0	<0.1	<0.1	84*71	NA	NA
DH800-012X28-23	0.12X	800	37.2	37.3	6.5	<0.1	<0.1	70*59.2	NA	NA
DH800-03X31-23	0.3X	800	9.2	22.4	10.0	<0.1	<0.1	28*23.7	NA	NA
DH840-03X31-18	0.3X	840	10.1	24.6	11.0	<0.1	<0.1	28*23.7	43.7*29	47*34.3
DH840-04X31-18	0.4X	840	5.7	18.5	11.0	<0.1	<0.1	21*17.8	32.8*21.8	35.3*25.8
DH890-02X31-18	0.2X	890	18.8	30.5	9.1	<0.1	<0.1	42*35.5	65.5*43.5	70.5*51.5
DH900-015X31-18	0.15X	900	45.8	55.9	12.5	<0.1	<0.1	56*47.3	87.3*58	94*68.7
DH900-025X31-23	0.25X	900	12.5	25.5	9.5	<0.1	<0.1	33.6*28.4	NA	NA
DH900-035X31-18	0.35X	900	7.4	21.1	11.0	<0.1	<0.1	24*20.3	37.4*24.9	40.3*29.4
DH940-03X31-18	0.3X	940	9.2	22.4	10.0	<0.1	<0.1	28*23.7	43.7*29	47*34.3
DH950-02X31-18	0.2X	950	22.7	36.9	11.0	<0.1	<0.1	42*35.5	65.5*43.5	70.5*51.5
DH960-03X31-16	0.3X	960	19.5	47.6	21.3	<0.1	<0.1	28*23.7	43.7*29	NA
DH1000-02X31-23	0.2X	1000	20.6	33.6	10.0	<0.1	<0.1	42*35.5	NA	NA
DH1120-02X31-18	0.2X	1120	20.6	33.6	10.0	<0.1	<0.1	42*35.5	65.5*43.5	70.5*51.5
DH1200-015X31-18	0.15X	1200	45.1	55.0	12.3	<0.1	<0.1	56*47.3	87.3*58	94*68.7

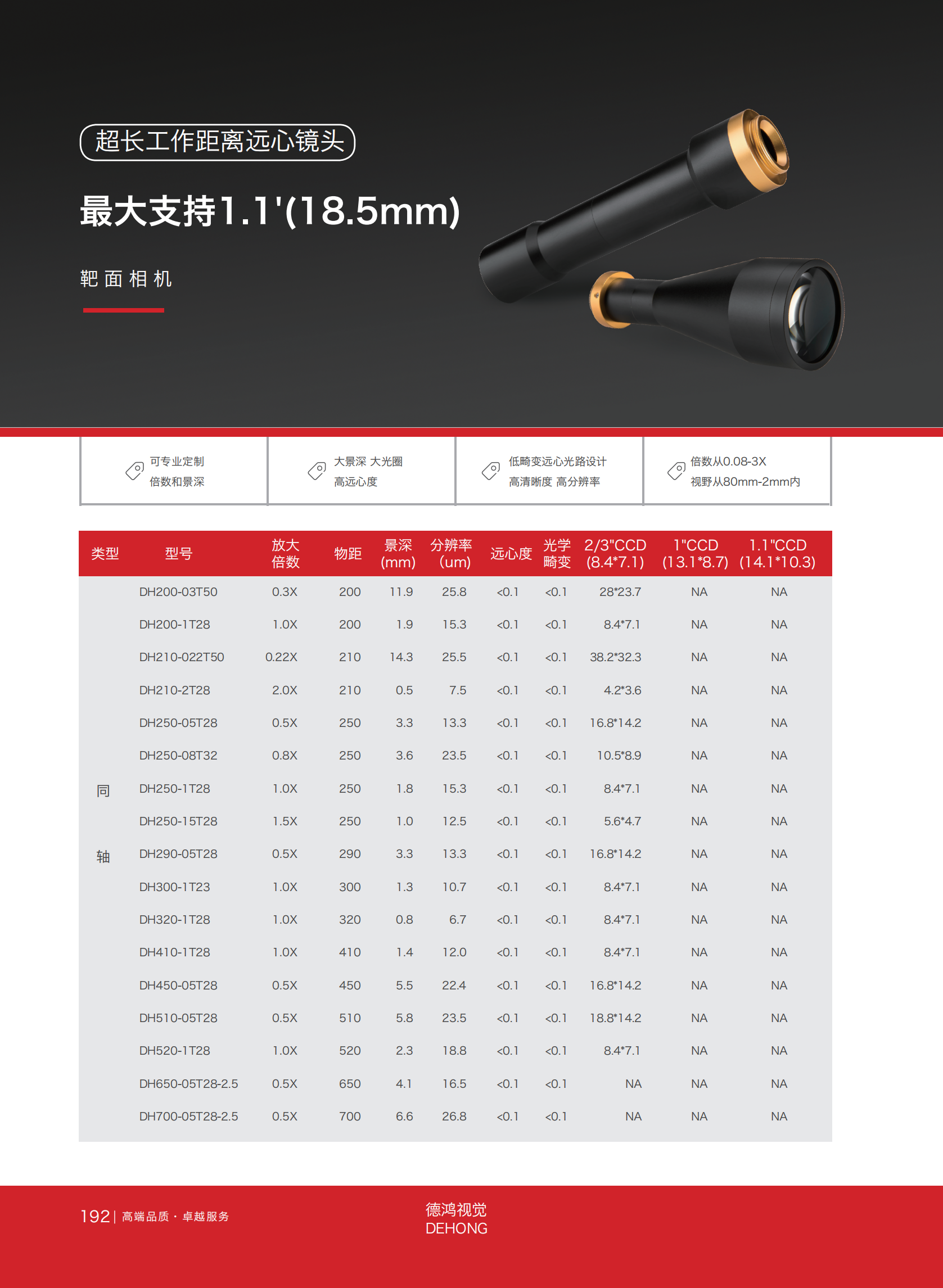

类型	型号	放大倍数	物距	景深 (mm)	分辨率（um)	光圈（F)	远心度	光学畸变	2/3"CCD (8.4*7.1)	1"CCD (13.1*8.7)	1.1"CCD (14.1*10.3)
同轴	DH200-03T50	0.3X	200	11.9	25.8	13.0	<0.1	<0.1	28*23.7	NA	NA
	DH200-1T28	1.0X	200	1.9	15.3	22.7	<0.1	<0.1	8.4*7.1	NA	NA
	DH210-022T50	0.22X	210	14.3	25.5	8.4	<0.1	<0.1	38.2*32.3	NA	NA
	DH210-2T28	2.0X	210	0.5	7.5	22.0	<0.1	<0.1	4.2*3.6	NA	NA
	DH250-05T28	0.5X	250	3.3	13.3	9.9	<0.1	<0.1	16.8*14.2	NA	NA
	DH250-08T32	0.8X	250	3.6	23.5	28.0	<0.1	<0.1	10.5*8.9	NA	NA
	DH250-1T28	1.0X	250	1.8	15.3	22.0	<0.1	<0.1	8.4*7.1	NA	NA
	DH250-15T28	1.5X	250	1.0	12.5	28.0	<0.1	<0.1	5.6*4.7	NA	NA
	DH290-05T28	0.5X	290	3.3	13.3	9.9	<0.1	<0.1	16.8*14.2	NA	NA
	DH300-1T23	1.0X	300	1.3	10.7	16.0	<0.1	<0.1	8.4*7.1	NA	NA
	DH320-1T28	1.0X	320	0.8	6.7	10.0	<0.1	<0.1	8.4*7.1	NA	NA
	DH410-1T28	1.0X	410	1.4	12.0	16.8	<0.1	<0.1	8.4*7.1	NA	NA
	DH450-05T28	0.5X	450	5.5	22.4	16.7	<0.1	<0.1	16.8*14.2	NA	NA
	DH510-05T28	0.5X	510	5.8	23.5	17.5	<0.1	<0.1	18.8*14.2	NA	NA
	DH520-1T28	1.0X	520	2.3	18.8	28.0	<0.1	<0.1	8.4*7.1	NA	NA
	DH650-05T28-2.5	0.5X	650	4.1	16.5	12.3	<0.1	<0.1	16.8*14.2	NA	NA
	DH700-05T28-2.5	0.5X	700	6.6	26.8	20.0	<0.1	<0.1	16.8*14.2	NA	NA
