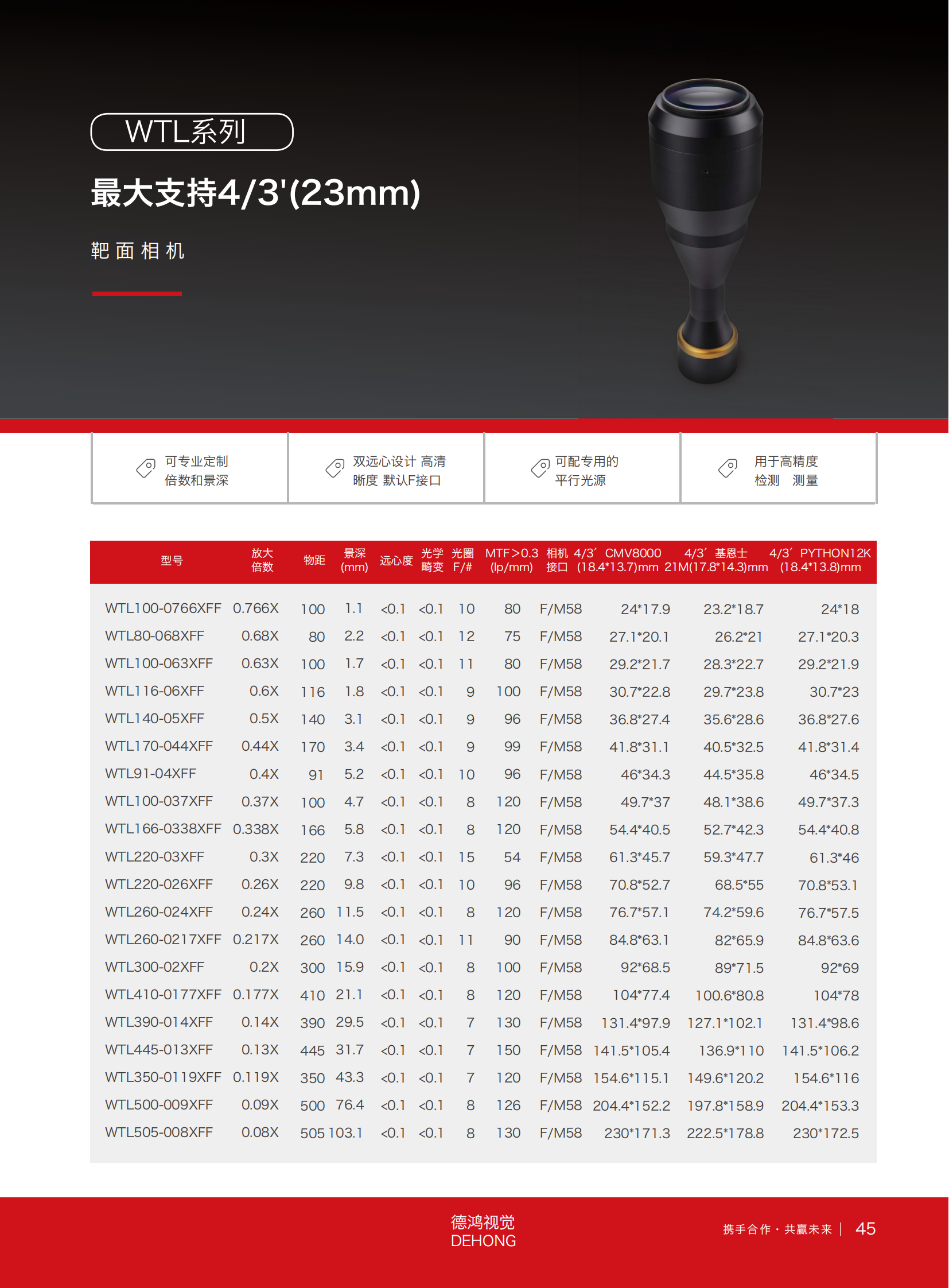

| 型号 | 放大倍数 | 物距 | 景深 （mm) | 远心度 | 光学畸变 | 分辨率 （um） | 光圈 (F) | MTF>0.3 (LP/MM) | 4/3′CMV800 0(18.4*13.7)mm | 4/3′基恩士21M (17.8*14.3)mm | 4/3′PYTHON12K (18.4*13.8)mm |
| WTL100-0766XFF | 0.766X | 100 | 1.1 | <0.1 | <0.1 | 7.0 | F8 | 110 | 24*17.9 | 23.2*18.7 | 24*18 |
| WTL80-068XFF | 0.68X | 80 | 2.2 | <0.1 | <0.1 | 12.0 | F12.1 | 100 | 27.1*20.1 | 26.2*21 | 27.1*20.3 |
| WTL100-063XFF | 0.63X | 100 | 1.7 | <0.1 | <0.1 | 8.5 | F8 | 110 | 29.2*21.7 | 28.3*22.7 | 29.2*21.9 |
| WTL116-06XFF | 0.6X | 116 | 1.8 | <0.1 | <0.1 | 8.9 | F8 | 110 | 30.7*22.8 | 29.7*23.8 | 30.7*23 |
| WTL140-05XFF | 0.5X | 140 | 3.1 | <0.1 | <0.1 | 12.4 | F9.3 | 120 | 36.8*27.4 | 35.6*28.6 | 36.8*27.6 |
| WTL170-044XFF | 0.44X | 170 | 3.4 | <0.1 | <0.1 | 12.2 | F8 | 110 | 41.8*31.1 | 40.5*32.5 | 41.8*31.4 |
| WTL91-04XFF | 0.4X | 91 | 5.2 | <0.1 | <0.1 | 16.8 | F10 | 120 | 46*34.3 | 44.5*35.8 | 46*34.5 |
| WTL100-037XFF | 0.37X | 100 | 4.7 | <0.1 | <0.1 | 14.0 | F7.7 | 120 | 49.7*37 | 48.1*38.6 | 49.7*37.3 |
| WTL166-0338XFF | 0.338X | 166 | 5.8 | <0.1 | <0.1 | 15.9 | F8 | 110 | 54.4*40.5 | 52.7*42.3 | 54.4*40.8 |
| WTL220-03XFF | 0.3X | 220 | 7.3 | <0.1 | <0.1 | 17.9 | F8 | 110 | 61.3*45.7 | 59.3*47.7 | 61.3*46 |
| WTL220-026XFF | 0.26X | 220 | 9.8 | <0.1 | <0.1 | 20.6 | F8 | 110 | 70.8*52.7 | 68.5*55 | 70.8*53.1 |
| WTL260-024XFF | 0.24X | 260 | 11.5 | <0.1 | <0.1 | 22.4 | F8 | 110 | 76.7*57.1 | 74.2*59.6 | 76.7*57.5 |
| WTL260-0217XFF | 0.217X | 260 | 14.0 | <0.1 | <0.1 | 24.7 | F8 | 110 | 84.8*63.1 | 82*65.9 | 84.8*63.6 |
| WTL300-02XFF | 0.2X | 300 | 15.9 | <0.1 | <0.1 | 25.8 | F7.7 | 120 | 92*68.5 | 89*71.5 | 92*69 |
| WTL410-0177XFF | 0.177X | 410 | 21.1 | <0.1 | <0.1 | 30.3 | F8 | 100 | 104*77.4 | 100.6*80.8 | 104*78 |
| WTL390-014XFF | 0.14X | 390 | 29.5 | <0.1 | <0.1 | 33.6 | F7 | 180 | 131.4*97.9 | 127.1*102.1 | 131.4*98.6 |
| WTL445-013XFF | 0.13X | 445 | 31.7 | <0.1 | <0.1 | 33.6 | F6.5 | 150 | 141.5*105.4 | 136.9*110 | 141.5*106.2 |
| WTL350-0119XFF | 0.119X | 350 | 43.3 | <0.1 | <0.1 | 41.9 | F7.4 | 180 | 154.6*115.1 | 149.6*120.2 | 154.6*116 |
| WTL500-009XFF | 0.09X | 500 | 76.4 | <0.1 | <0.1 | 55.9 | F7.5 | 100 | 204.4*152.2 | 197.8*158.9 | 204.4*153.3 |
| WTL505-008XFF | 0.08X | 505 | 103.1 | <0.1 | <0.1 | 67.1 | F8 | 120 | 230*171.3 | 222.5*178.8 | 230*172.5 |

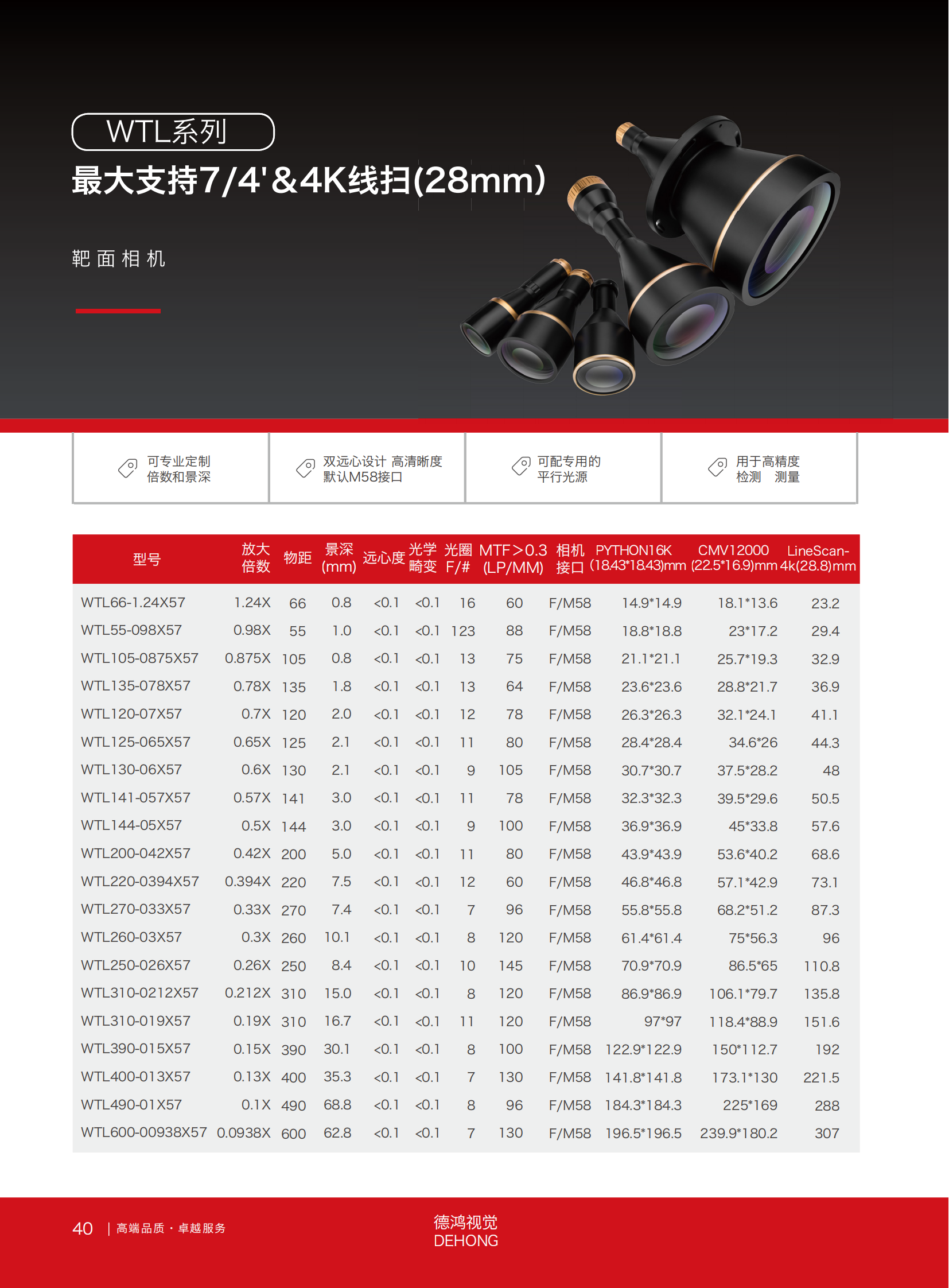

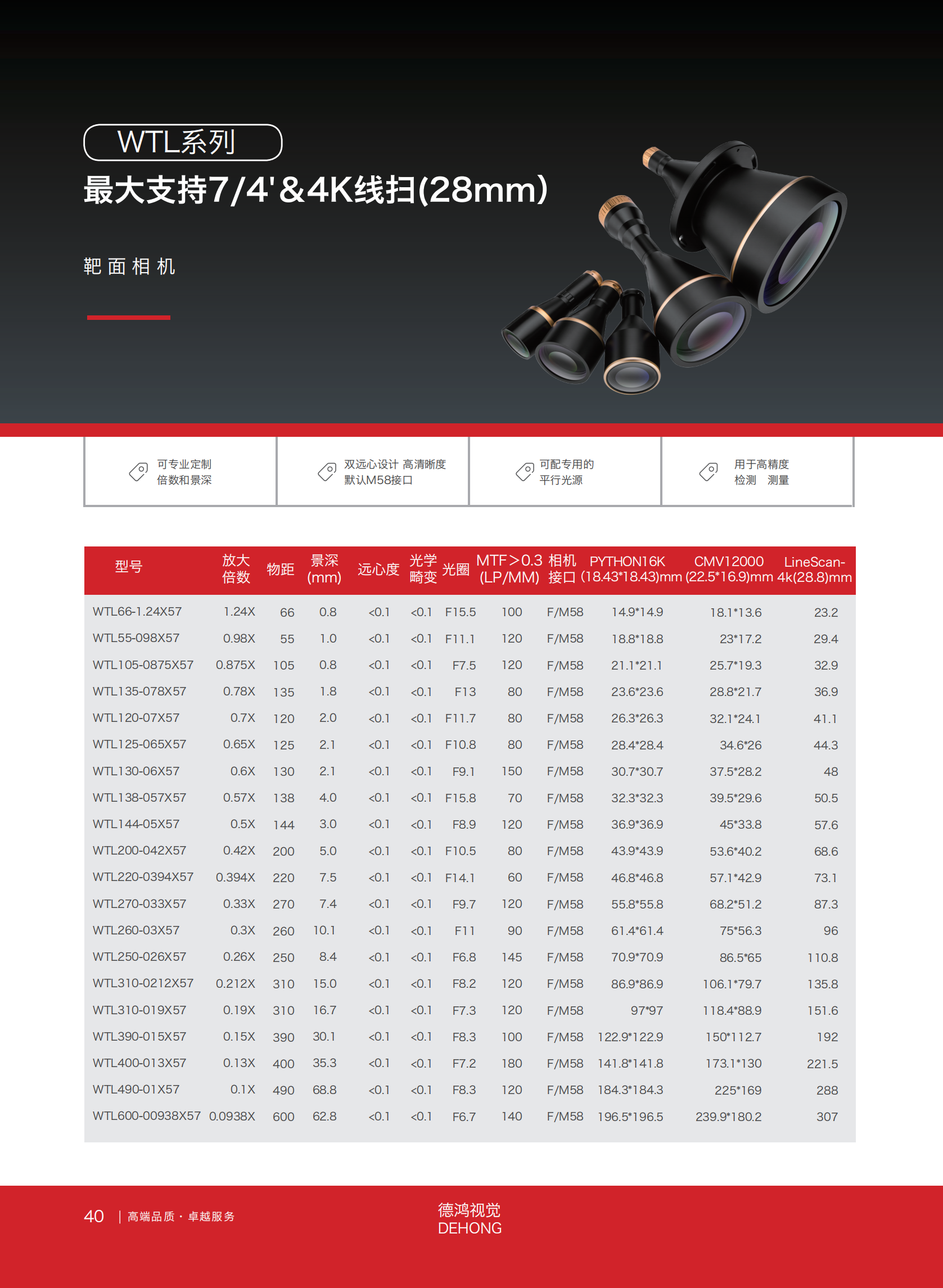

| 型号 | 放大倍数 | 物距 | 景深 （mm) | 远心度 | 光学畸变 | 分辨率 （um） | 光圈 (F) | MTF>0.3 (LP/MM) | PYTHON16K（18.43*18.43）mm | CMV12000 (22.5*16.9)mm | LineScan-4k (28.8)mm |
| WTL66-1.24X57 | 1.24X | 66 | 0.8 | <0.1 | <0.1 | 8.4 | F15.5 | 100 | 14.9*14.9 | 18.1*13.6 | 23.2 |
| WTL55-098X57 | 0.98X | 55 | 1.0 | <0.1 | <0.1 | 7.6 | F11.1 | 120 | 18.8*18.8 | 23*17.2 | 29.4 |
| WTL105-0875X57 | 0.875X | 105 | 0.8 | <0.1 | <0.1 | 5.8 | F7.5 | 120 | 21.1*21.1 | 25.7*19.3 | 32.9 |
| WTL135-078X57 | 0.78X | 135 | 1.8 | <0.1 | <0.1 | 11.2 | F13 | 80 | 23.6*23.6 | 28.8*21.7 | 36.9 |
| WTL120-07X57 | 0.7X | 120 | 2.0 | <0.1 | <0.1 | 11.2 | F11.7 | 80 | 26.3*26.3 | 32.1*24.1 | 41.1 |
| WTL125-065X57 | 0.65X | 125 | 2.1 | <0.1 | <0.1 | 11.2 | F10.8 | 80 | 28.4*28.4 | 34.6*26 | 44.3 |
| WTL130-06X57 | 0.6X | 130 | 2.1 | <0.1 | <0.1 | 10.2 | F9.1 | 150 | 30.7*30.7 | 37.5*28.2 | 48 |
| WTL138-057X57 | 0.57X | 138 | 4.0 | <0.1 | <0.1 | 18.6 | F15.8 | 70 | 32.3*32.3 | 39.5*29.6 | 50.5 |
| WTL144-05X57 | 0.5X | 144 | 3.0 | <0.1 | <0.1 | 12.0 | F8.9 | 120 | 36.9*36.9 | 45*33.8 | 57.6 |
| WTL200-042X57 | 0.42X | 200 | 5.0 | <0.1 | <0.1 | 16.8 | F10.5 | 80 | 43.9*43.9 | 53.6*40.2 | 68.6 |
| WTL220-0394X57 | 0.394X | 220 | 7.5 | <0.1 | <0.1 | 24.0 | F14.1 | 60 | 46.8*46.8 | 57.1*42.9 | 73.1 |
| WTL270-033X57 | 0.33X | 270 | 7.4 | <0.1 | <0.1 | 19.7 | F9.7 | 120 | 55.8*55.8 | 68.2*51.2 | 87.3 |
| WTL260-03X57 | 0.3X | 260 | 10.1 | <0.1 | <0.1 | 24.7 | F11 | 90 | 61.4*61.4 | 75*56.3 | 96 |
| WTL250-026X57 | 0.26X | 250 | 8.4 | <0.1 | <0.1 | 17.7 | F6.8 | 145 | 70.9*70.9 | 86.5*65 | 110.8 |
| WTL310-0212X57 | 0.212X | 310 | 15.0 | <0.1 | <0.1 | 25.8 | F8.2 | 120 | 86.9*86.9 | 106.1*79.7 | 135.8 |
| WTL310-019X57 | 0.19X | 310 | 16.7 | <0.1 | <0.1 | 25.8 | F7.3 | 120 | 97*97 | 118.4*88.9 | 151.6 |
| WTL390-015X57 | 0.15X | 390 | 30.1 | <0.1 | <0.1 | 37.3 | F8.3 | 100 | 122.9*122.9 | 150*112.7 | 192 |
| WTL400-013X57 | 0.13X | 400 | 35.3 | <0.1 | <0.1 | 37.3 | F7.2 | 180 | 141.8*141.8 | 173.1*130 | 221.5 |
| WTL490-01X57 | 0.1X | 490 | 68.8 | <0.1 | <0.1 | 55.9 | F8.3 | 120 | 184.3*184.3 | 225*169 | 288 |
| WTL600-00938X57 | 0.0938X | 600 | 62.8 | <0.1 | <0.1 | 47.9 | F6.7 | 140 | 196.5*196.5 | 239.9*180.2 | 307 |

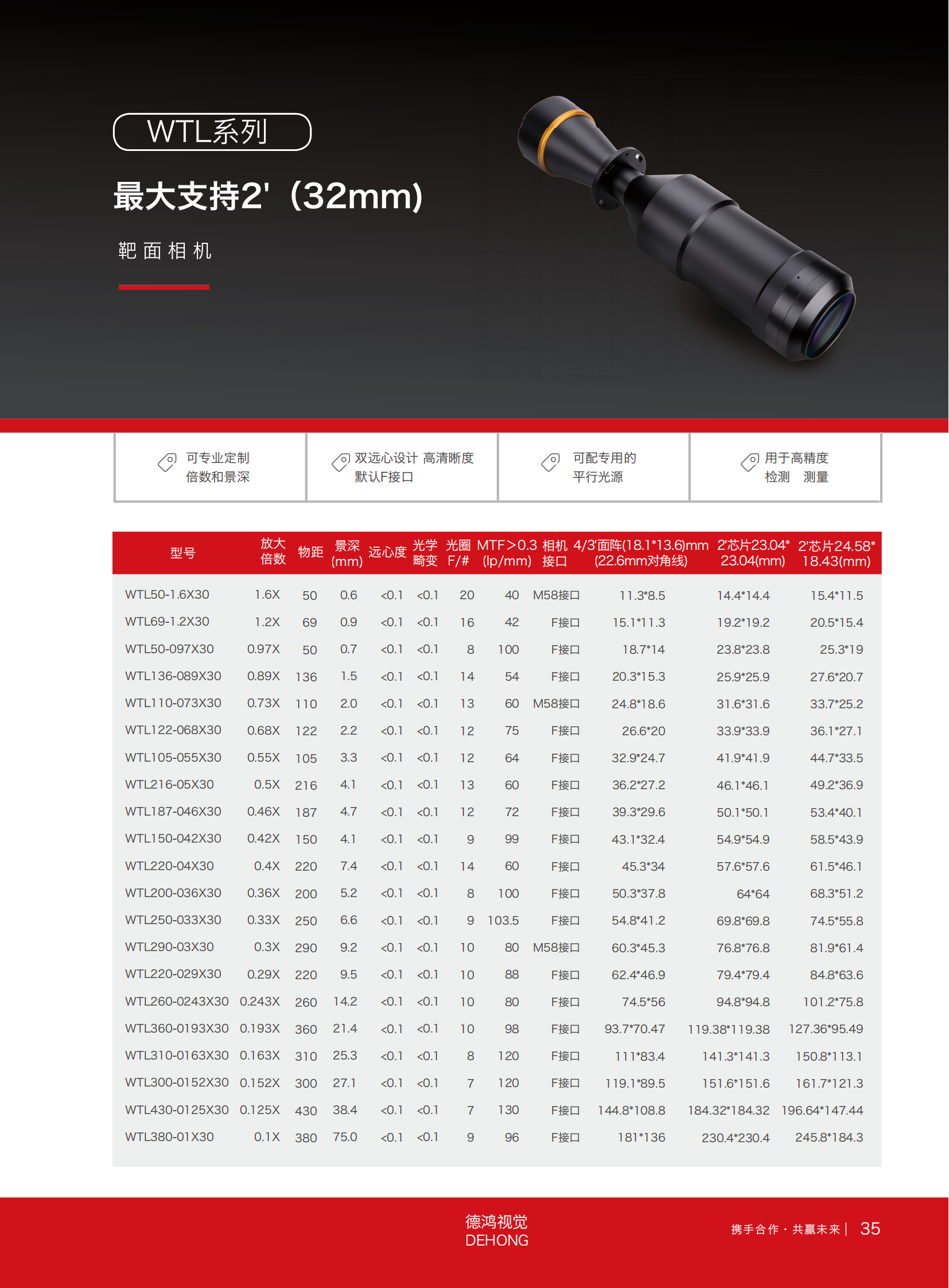

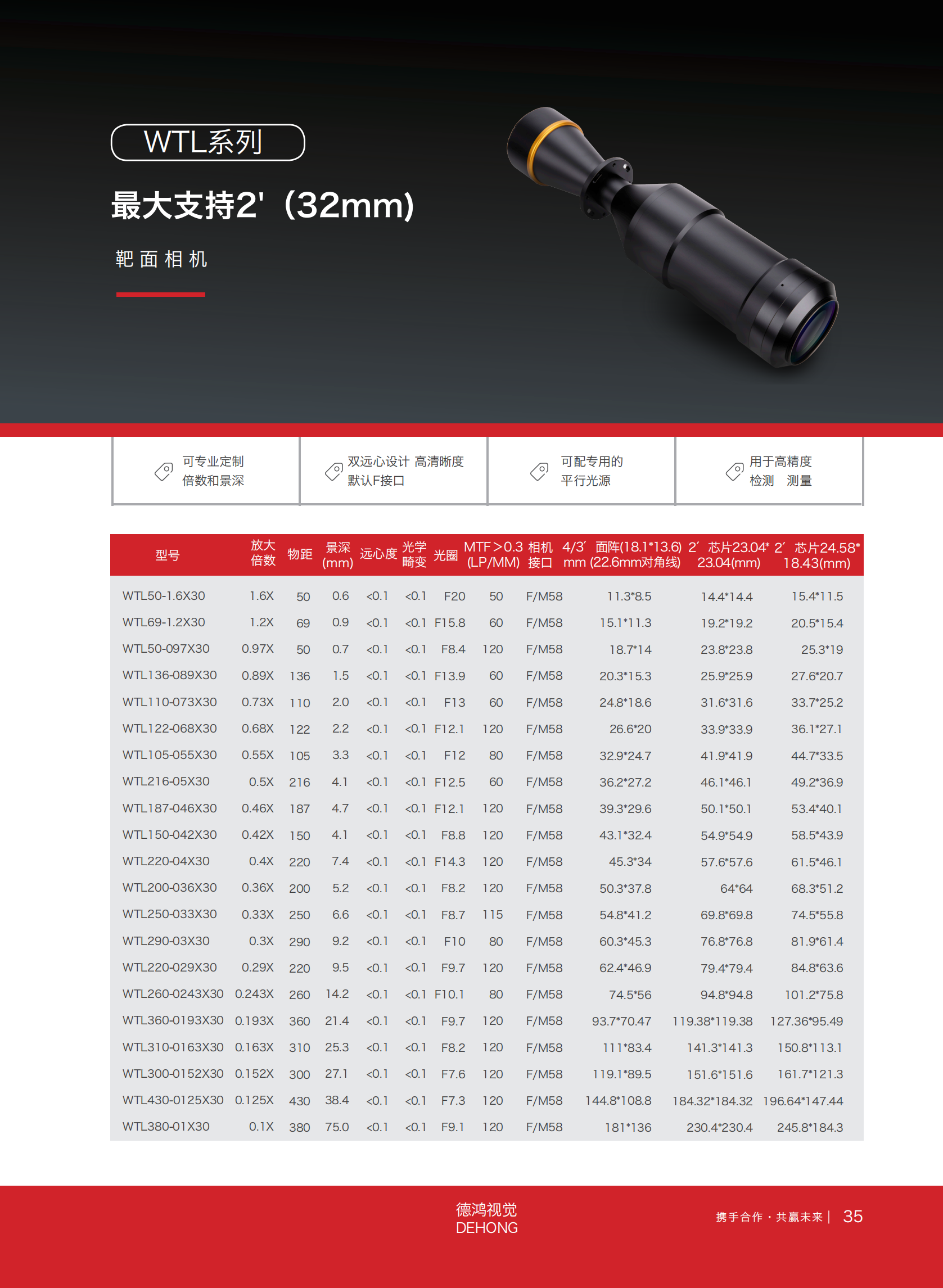

| 型号 | 放大倍数 | 物距 | 景深 （mm) | 远心度 | 光学畸变 | 分辨率 （um) | 光圈 (F) | MTF>0.3 (LP/MM) | 4/3′ 面阵(18.1*13.6) （22.6对角线） | 2′芯片 23.04*23.04 | 2′芯片 24.58*18.43 |
| WTL50-1.6X30 | 1.6X | 50 | 0.6 | <0.1 | <0.1 | 8.4 | F20 | 50 | 11.3*8.5 | 14.4*14.4 | 15.4*11.5 |
| WTL69-1.2X30 | 1.2X | 69 | 0.9 | <0.1 | <0.1 | 8.8 | F15.8 | 60 | 15.1*11.3 | 19.2*19.2 | 20.5*15.4 |
| WTL50-097X30 | 0.97X | 50 | 0.7 | <0.1 | <0.1 | 5.8 | F8.4 | 120 | 18.7*14 | 23.8*23.8 | 25.3*19 |
| WTL136-089X30 | 0.89X | 136 | 1.5 | <0.1 | <0.1 | 10.5 | F13.9 | 60 | 20.3*15.3 | 25.9*25.9 | 27.6*20.7 |
| WTL110-073X30 | 0.73X | 110 | 2.0 | <0.1 | <0.1 | 12.0 | F13 | 60 | 24.8*18.6 | 31.6*31.6 | 33.7*25.2 |
| WTL122-068X30 | 0.68X | 122 | 2.2 | <0.1 | <0.1 | 12.0 | F12.1 | 120 | 26.6*20 | 33.9*33.9 | 36.1*27.1 |
| WTL105-055X30 | 0.55X | 105 | 3.3 | <0.1 | <0.1 | 14.6 | F12 | 80 | 32.9*24.7 | 41.9*41.9 | 44.7*33.5 |
| WTL216-05X30 | 0.5X | 216 | 4.1 | <0.1 | <0.1 | 16.8 | F12.5 | 60 | 36.2*27.2 | 46.1*46.1 | 49.2*36.9 |
| WTL187-046X30 | 0.46X | 187 | 4.7 | <0.1 | <0.1 | 17.7 | F12.1 | 120 | 39.3*29.6 | 50.1*50.1 | 53.4*40.1 |
| WTL150-042X30 | 0.42X | 150 | 4.1 | <0.1 | <0.1 | 14.0 | F8.8 | 120 | 43.1*32.4 | 54.9*54.9 | 58.5*43.9 |
| WTL220-04X30 | 0.4X | 220 | 7.4 | <0.1 | <0.1 | 24.0 | F14.3 | 120 | 45.3*34 | 57.6*57.6 | 61.5*46.1 |
| WTL200-036X30 | 0.36X | 200 | 5.2 | <0.1 | <0.1 | 15.3 | F8.2 | 120 | 50.3*37.8 | 64*64 | 68.3*51.2 |
| WTL250-033X30 | 0.33X | 250 | 6.6 | <0.1 | <0.1 | 17.7 | F8.7 | 115 | 54.8*41.2 | 69.8*69.8 | 74.5*55.8 |
| WTL290-03X30 | 0.3X | 290 | 9.2 | <0.1 | <0.1 | 22.4 | F10 | 80 | 60.3*45.3 | 76.8*76.8 | 81.9*61.4 |
| WTL220-029X30 | 0.29X | 220 | 9.5 | <0.1 | <0.1 | 22.4 | F9.7 | 120 | 62.4*46.9 | 79.4*79.4 | 84.8*63.6 |
| WTL260-0243X30 | 0.243X | 260 | 14.2 | <0.1 | <0.1 | 28.0 | F10.1 | 80 | 74.5*56 | 94.8*94.8 | 101.2*75.8 |
| WTL360-0193X30 | 0.193X | 360 | 21.4 | <0.1 | <0.1 | 33.6 | F9.7 | 120 | 93.7*70.47 | 119.38*119.38 | 127.36*95.49 |
| WTL310-0163X30 | 0.163X | 310 | 25.3 | <0.1 | <0.1 | 33.6 | F8.2 | 120 | 111*83.4 | 141.3*141.3 | 150.8*113.1 |
| WTL300-0152X30 | 0.152X | 300 | 27.1 | <0.1 | <0.1 | 30.5 | F7.6 | 120 | 119.1*89.5 | 151.6*151.6 | 161.7*121.3 |
| WTL430-0125X30 | 0.125X | 430 | 38.4 | <0.1 | <0.1 | 39.0 | F7.3 | 120 | 144.8*108.8 | 184.32*184.32 | 196.64*147.44 |
| WTL380-01X30 | 0.1X | 380 | 75.0 | <0.1 | <0.1 | 61.0 | F9.1 | 120 | 181*136 | 230.4*230.4 | 245.8*184.3 |
