WTL 35 38 43 57mm
全画幅 16K 双远心镜头

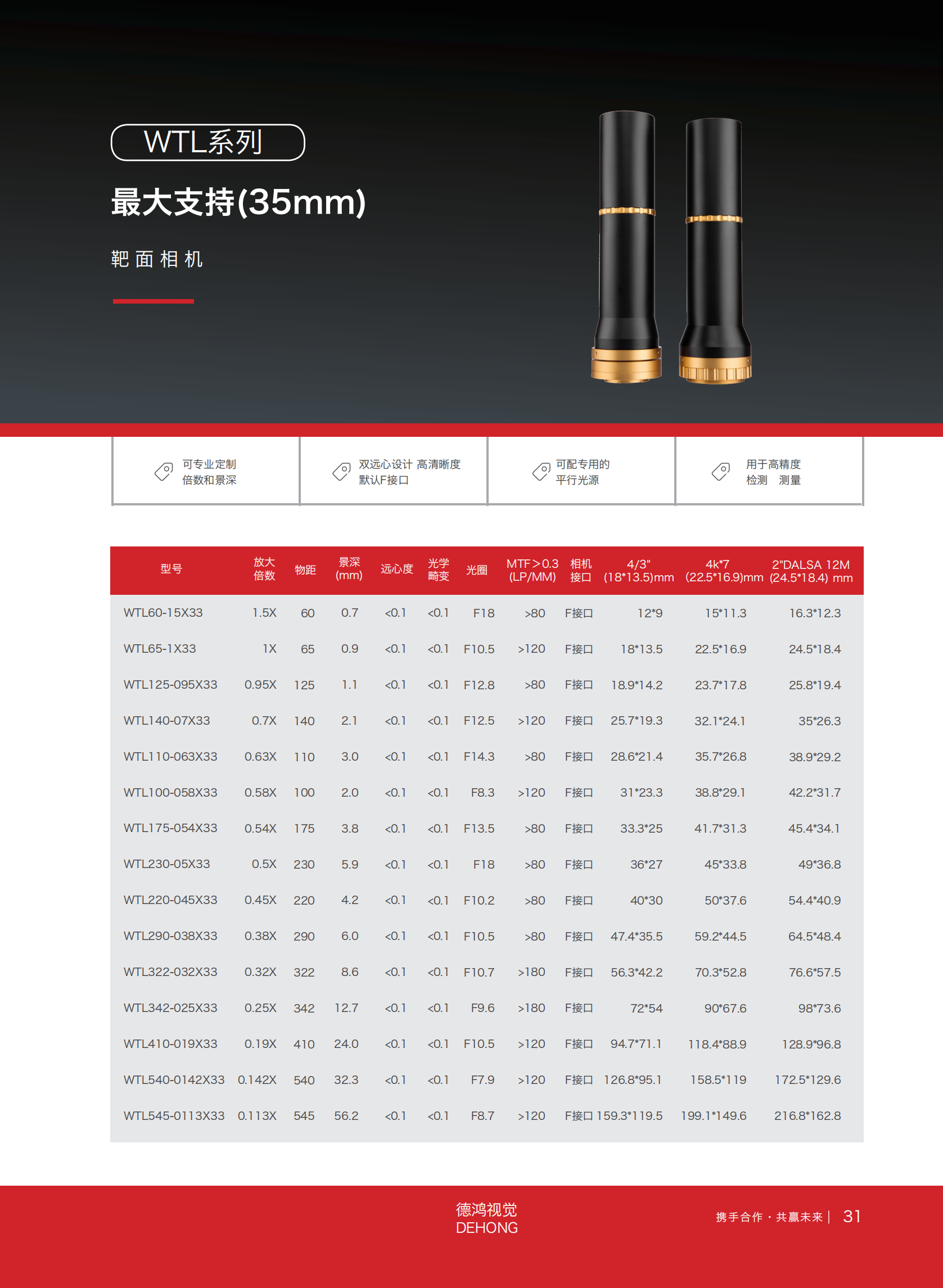

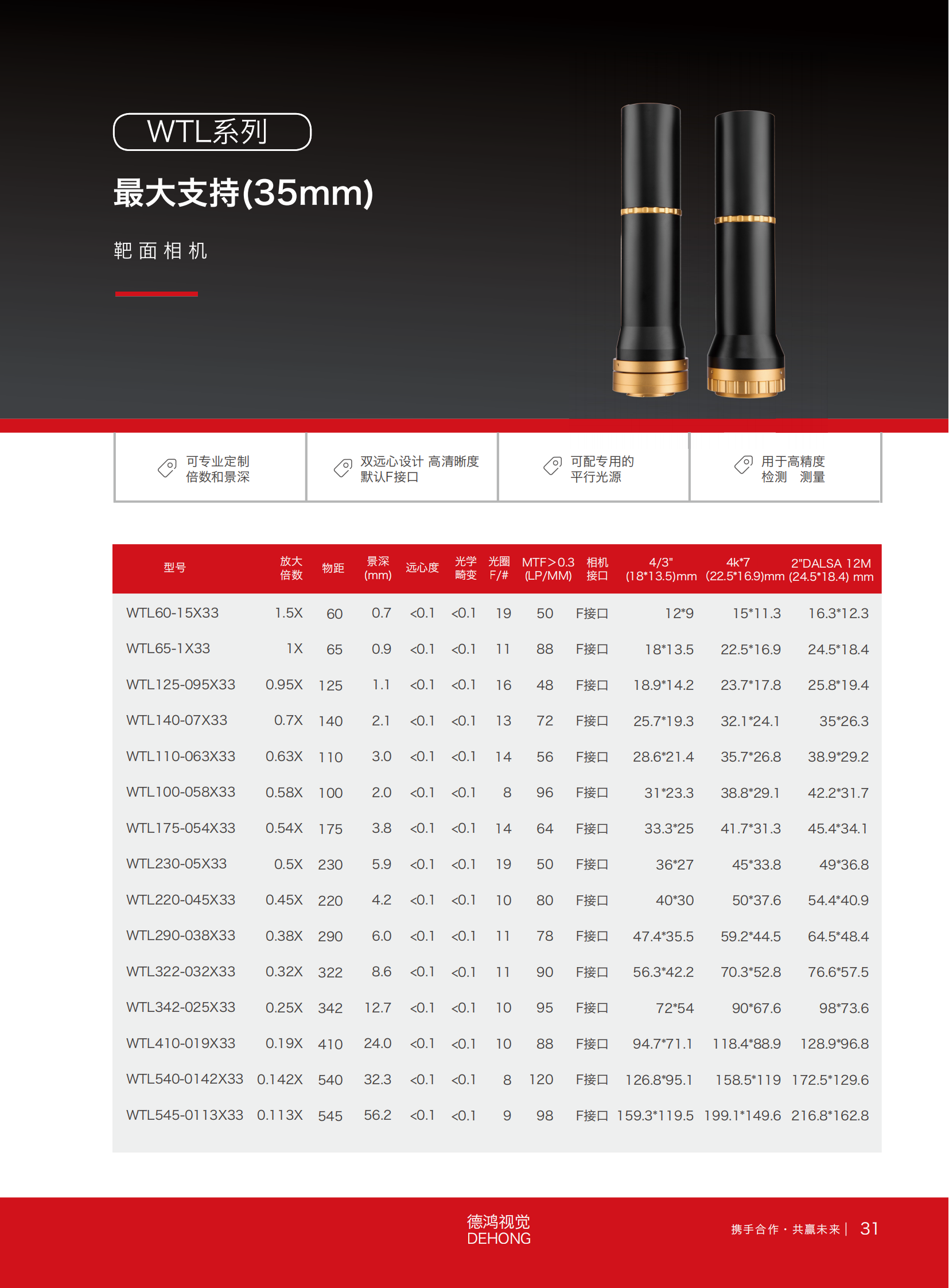

型号 | 放大倍数 | 物距 | 景深 (mm) | 远心度 | 光学畸变 | 分辨率 (um) | 光圈 (F) | MTF>0.3 (LP/MM) | 4/3" (18*13.5)mm | 4k*7㎛ (22.5*16.9)mm | 2"DALSA 12M (24.5*18.4) mm |
WTL60-15X33 | 1.5X | 60 | 0.7 | <0.1 | <0.1 | 8.4 | F18 | >80 | 12*9 | 15*11.3 | 16.3*12.3 |
WTL65-1X33 | 1X | 65 | 0.9 | <0.1 | <0.1 | 7.3 | F10.5 | >120 | 18*13.5 | 22.5*16.9 | 24.5*18.4 |
WTL125-095X33 | 0.95X | 125 | 1.1 | <0.1 | <0.1 | 9.0 | F12.8 | >80 | 18.9*14.2 | 23.7*17.8 | 25.8*19.4 |
WTL140-07X33 | 0.7X | 140 | 2.1 | <0.1 | <0.1 | 12.0 | F12.5 | >120 | 25.7*19.3 | 32.1*24.1 | 35*26.3 |
WTL110-063X33 | 0.63X | 110 | 3.0 | <0.1 | <0.1 | 15.3 | F14.3 | >80 | 28.6*21.4 | 35.7*26.8 | 38.9*29.2 |
WTL100-058X33 | 0.58X | 100 | 2.0 | <0.1 | <0.1 | 9.6 | F8.3 | >120 | 31*23.3 | 38.8*29.1 | 42.2*31.7 |
WTL175-054X33 | 0.54X | 175 | 3.8 | <0.1 | <0.1 | 16.8 | F13.5 | >80 | 33.3*25 | 41.7*31.3 | 45.4*34.1 |
WTL230-05X33 | 0.5X | 230 | 5.9 | <0.1 | <0.1 | 24.2 | F18 | >80 | 36*27 | 45*33.8 | 49*36.8 |
WTL220-045X33 | 0.45X | 220 | 4.2 | <0.1 | <0.1 | 15.3 | F10.2 | >80 | 40*30 | 50*37.6 | 54.4*40.9 |
WTL290-038X33 | 0.38X | 290 | 6.0 | <0.1 | <0.1 | 18.6 | F10.5 | >80 | 47.4*35.5 | 59.2*44.5 | 64.5*48.4 |
WTL322-032X33 | 0.32X | 322 | 8.6 | <0.1 | <0.1 | 22.4 | F10.7 | >180 | 56.3*42.2 | 70.3*52.8 | 76.6*57.5 |
WTL342-025X33 | 0.25X | 342 | 12.7 | <0.1 | <0.1 | 25.8 | F9.6 | >180 | 72*54 | 90*67.6 | 98*73.6 |
WTL410-019X33 | 0.19X | 410 | 24.0 | <0.1 | <0.1 | 37.1 | F10.5 | >120 | 94.7*71.1 | 118.4*88.9 | 128.9*96.8 |
WTL540-0142X33 | 0.142X | 540 | 32.3 | <0.1 | <0.1 | 37.3 | F7.9 | >120 | 126.8*95.1 | 158.5*119 | 172.5*129.6 |
WTL545-0113X33 | 0.113X | 545 | 56.2 | <0.1 | <0.1 | 51.6 | F8.7 | >120 | 159.3*119.5 | 199.1*149.6 | 216.8*162.8 |

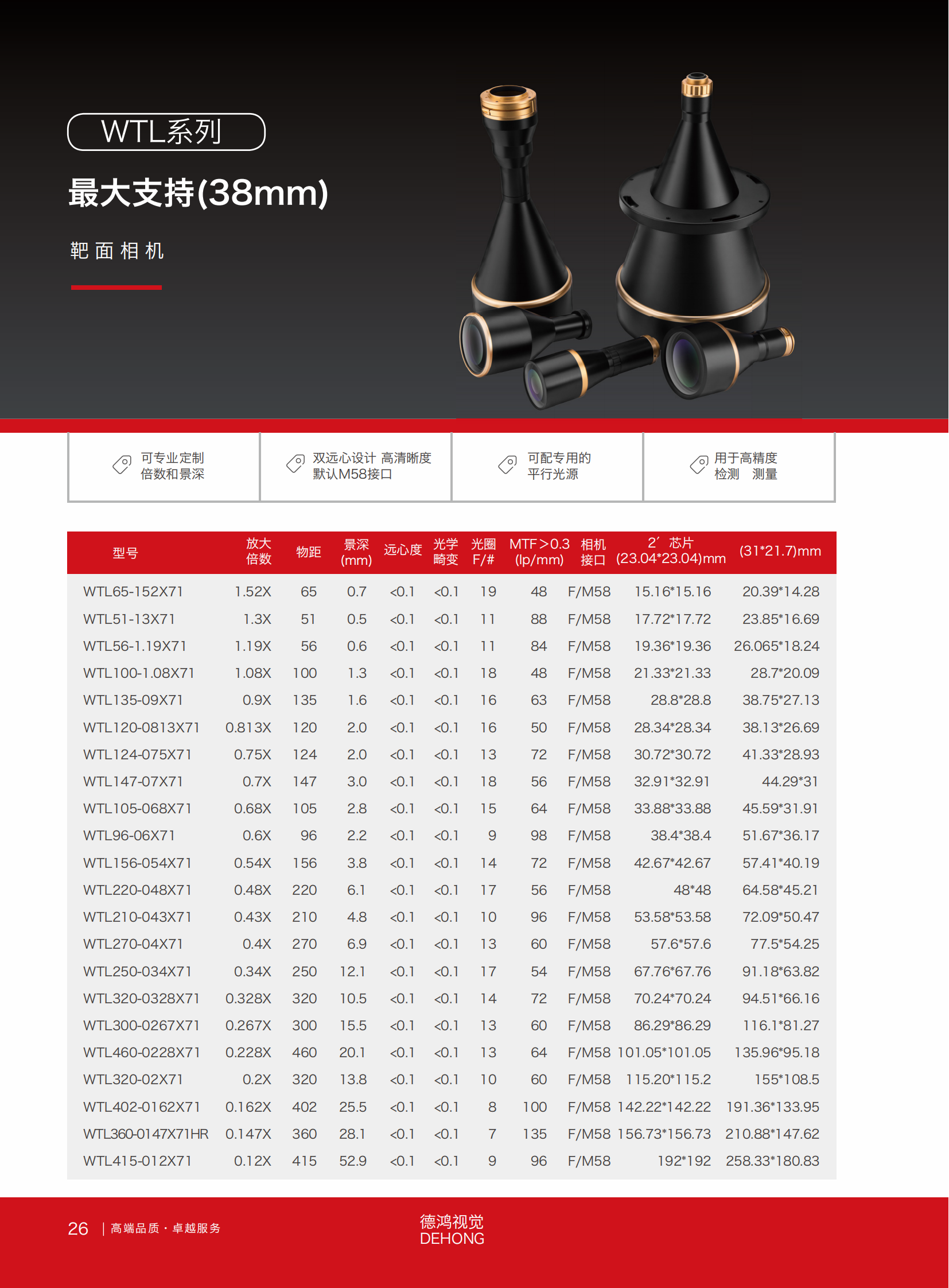

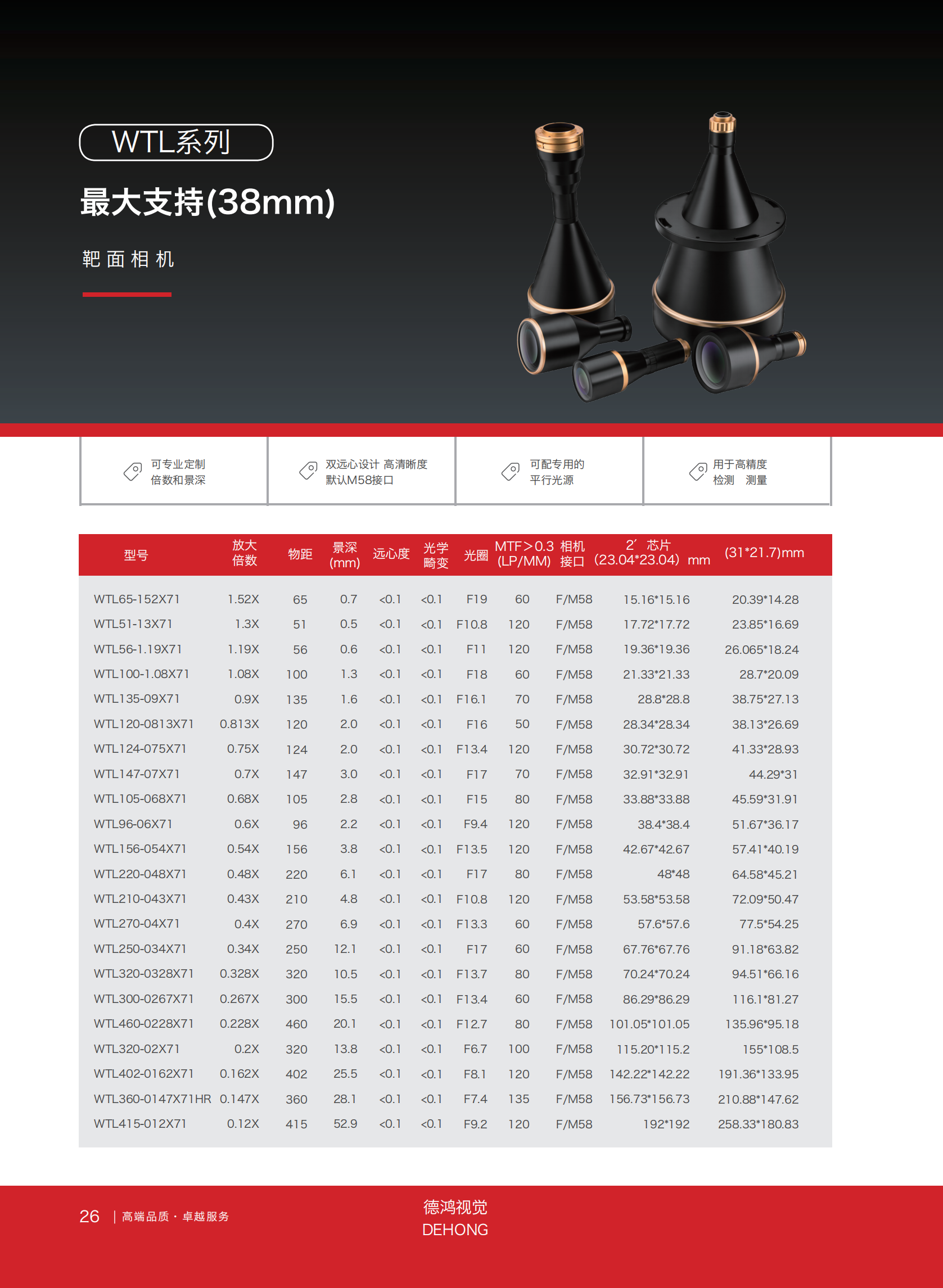

型号 | 放大倍数 | 物距 | 景深 (mm) | 远心度 | 光学畸变 | 分辨率 (um) | 光圈 (F) | MTF>0.3 (LP/MM) | 2′芯片(23.04*23.04) | (31*21.7) |
WTL65-152X71 | 1.52X | 65 | 0.7 | <0.1 | <0.1 | 8.4 | F19 | 60 | 15.16*15.16 | 20.39*14.28 |
WTL51-13X71 | 1.3X | 51 | 0.5 | <0.1 | <0.1 | 5.6 | F10.8 | 120 | 17.72*17.72 | 23.85*16.69 |
WTL56-1.19X71 | 1.19X | 56 | 0.6 | <0.1 | <0.1 | 5.6 | F11 | 120 | 19.36*19.36 | 26.065*18.24 |
WTL100-1.08X71 | 1.08X | 100 | 1.3 | <0.1 | <0.1 | 11.2 | F18 | 60 | 21.33*21.33 | 28.7*20.09 |
WTL135-09X71 | 0.9X | 135 | 1.6 | <0.1 | <0.1 | 12.0 | F16.1 | 70 | 28.8*28.8 | 38.75*27.13 |
WTL120-0813X71 | 0.813X | 120 | 2.0 | <0.1 | <0.1 | 13.2 | F16 | 50 | 28.34*28.34 | 38.13*26.69 |
WTL124-075X71 | 0.75X | 124 | 2.0 | <0.1 | <0.1 | 12.0 | F13.4 | 120 | 30.72*30.72 | 41.33*28.93 |
WTL147-07X71 | 0.7X | 147 | 3.0 | <0.1 | <0.1 | 16.8 | F17 | 70 | 32.91*32.91 | 44.29*31 |
WTL105-068X71 | 0.68X | 105 | 2.8 | <0.1 | <0.1 | 15.3 | F15 | 80 | 33.88*33.88 | 45.59*31.91 |
WTL96-06X71 | 0.6X | 96 | 2.2 | <0.1 | <0.1 | 10.5 | F9.4 | 120 | 38.4*38.4 | 51.67*36.17 |
WTL156-054X71 | 0.54X | 156 | 3.8 | <0.1 | <0.1 | 16.8 | F13.5 | 120 | 42.67*42.67 | 57.41*40.19 |
WTL220-048X71 | 0.48X | 220 | 6.1 | <0.1 | <0.1 | 24.0 | F17 | 80 | 48*48 | 64.58*45.21 |
WTL210-043X71 | 0.43X | 210 | 4.8 | <0.1 | <0.1 | 16.8 | F10.8 | 120 | 53.58*53.58 | 72.09*50.47 |
WTL270-04X71 | 0.4X | 270 | 6.9 | <0.1 | <0.1 | 22.4 | F13.3 | 60 | 57.6*57.6 | 77.5*54.25 |
WTL250-034X71 | 0.34X | 250 | 12.1 | <0.1 | <0.1 | 33.6 | F17 | 60 | 67.76*67.76 | 91.18*63.82 |
WTL320-0328X71 | 0.328X | 320 | 10.5 | <0.1 | <0.1 | 28.0 | F13.7 | 80 | 70.24*70.24 | 94.51*66.16 |
WTL300-0267X71 | 0.267X | 300 | 15.5 | <0.1 | <0.1 | 33.6 | F13.4 | 60 | 86.29*86.29 | 116.1*81.27 |
WTL460-0228X71 | 0.228X | 460 | 20.1 | <0.1 | <0.1 | 37.3 | F12.7 | 80 | 101.05*101.05 | 135.96*95.18 |
WTL320-02X71 | 0.2X | 320 | 13.8 | <0.1 | <0.1 | 22.4 | F6.7 | 100 | 115.20*115.2 | 155*108.5 |
WTL402-0162X71 | 0.162X | 402 | 25.5 | <0.1 | <0.1 | 33.6 | F8.1 | 120 | 142.22*142.22 | 191.36*133.95 |
WTL360-0147X71HR | 0.147X | 360 | 28.1 | <0.1 | <0.1 | 33.6 | F7.4 | 135 | 156.73*156.73 | 210.88*147.62 |
WTL415-012X71 | 0.12X | 415 | 52.9 | <0.1 | <0.1 | 51.6 | F9.2 | 120 | 192*192 | 258.33*180.83 |

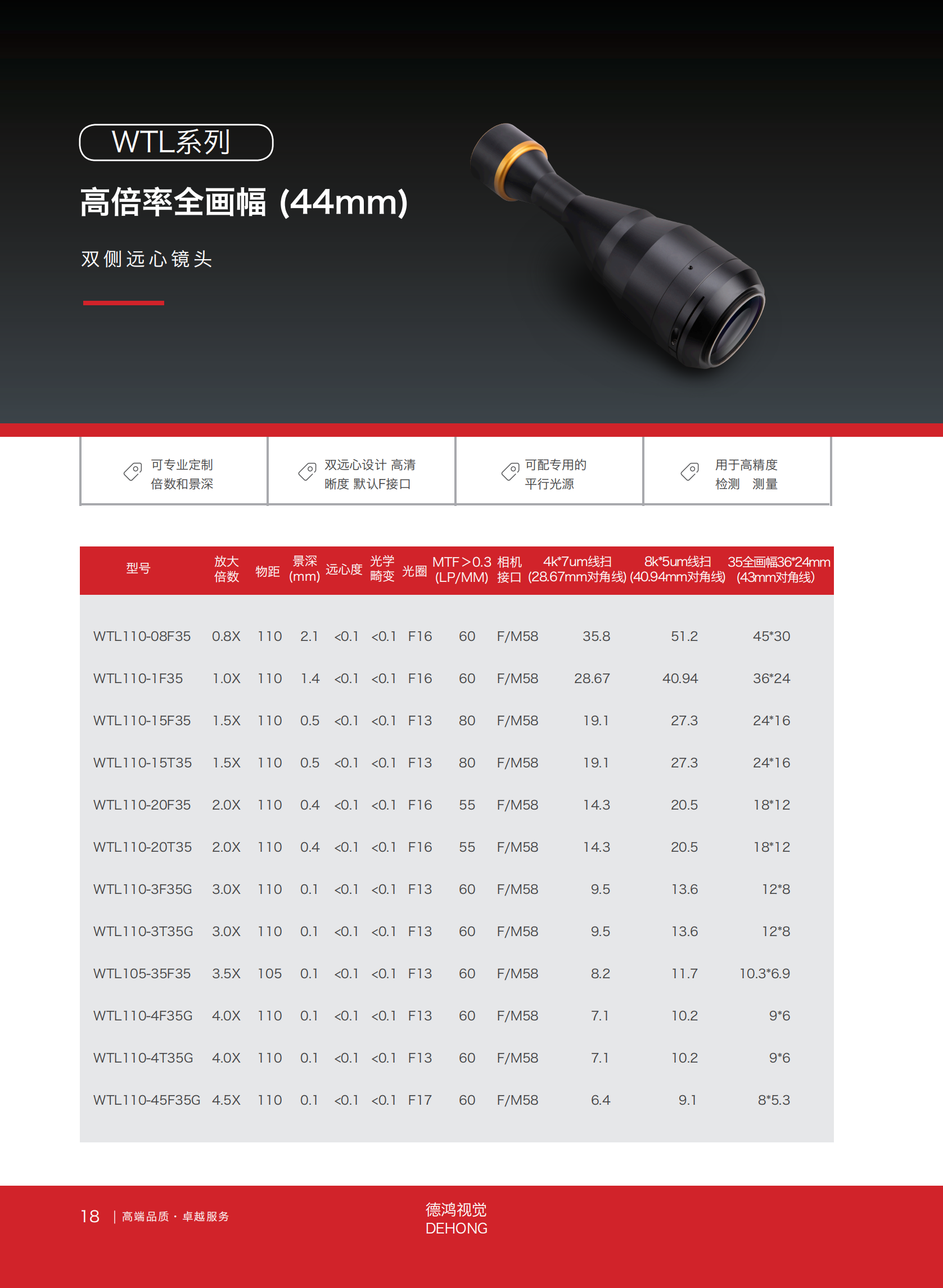

型号 | 放大倍数 | 物距 | 景深 (mm) | 远心度 | 光学畸变 | 分辨率 (um) | 光圈 (F) | MTF>0.3 (LP/MM) | 4k*7um线扫 (28.67mm对角线) | 8k*5um线扫 (40.94mm对角线) | 35全画幅36*24mm (43mm对角线) |
WTL110-08F35 | 0.8X | 110 | 2.1 | <0.1 | <0.1 | 0.73-2.68 | F16 | 60 | 35.8 | 51.2 | 45*30 |
WTL110-1F35 | 1.0X | 110 | 1.4 | <0.1 | <0.1 | 1.07-2.68 | F16 | 60 | 28.67 | 40.94 | 36*24 |
WTL110-15F35 | 1.5X | 110 | 0.5 | <0.1 | <0.1 | 1.19-2.98 | F13 | 80 | 19.1 | 27.3 | 24*16 |
WTL110-15T35 | 1.5X | 110 | 0.5 | <0.1 | <0.1 | 1.01-3.36 | F13 | 80 | 19.1 | 27.3 | 24*16 |
WTL110-20F35 | 2.0X | 110 | 0.4 | <0.1 | <0.1 | 1.01-3.36 | F16 | 55 | 14.3 | 20.5 | 18*12 |
WTL110-20T35 | 2.0X | 110 | 0.4 | <0.1 | <0.1 | 1.15-4.60 | F16 | 55 | 14.3 | 20.5 | 18*12 |
WTL110-3F35G | 3.0X | 110 | 0.1 | <0.1 | <0.1 | 1.34-5.37 | F13 | 60 | 9.5 | 13.6 | 12*8 |
WTL110-3T35G | 3.0X | 110 | 0.1 | <0.1 | <0.1 | 1.34-5.37 | F13 | 60 | 9.5 | 13.6 | 12*8 |
WTL105-35F35 | 3.5X | 105 | 0.1 | <0.1 | <0.1 | 6.1 | F13 | 60 | 8.2 | 11.7 | 10.3*6.9 |
WTL110-4F35G | 4.0X | 110 | 0.1 | <0.1 | <0.1 | 6.1 | F13 | 60 | 7.1 | 10.2 | 9*6 |
WTL110-4T35G | 4.0X | 110 | 0.1 | <0.1 | <0.1 | 6.1 | F13 | 60 | 7.1 | 10.2 | 9*6 |
WTL110-45F35G | 4.5X | 110 | 0.1 | <0.1 | <0.1 | 6.1 | F17 | 60 | 6.4 | 9.1 | 8*5.3 |
WTL105-5F35G | 5.0X | 105 | 0.1 | <0.1 | <0.1 | 11.2 | F17 | 60 | 5.7 | 8.2 | 7.2*4.8 |
WTL100-6F35G | 6.0X | 100 | 0.04 | <0.1 | <0.1 | 13.4 | F19 | 60 | 4.8 | 6.8 | 6*4 |
WTL45-1.83X35 | 1.83X | 45 | 0.4 | <0.1 | <0.1 | 5.9 | F16 | 60 | 15.7 | 22.4 | 19.7*13.1 |
WTL68-1.76X35 | 1.76X | 68 | 0.4 | <0.1 | <0.1 | 6.1 | F16 | 95 | 16.3 | 23.3 | 20.5*13.6 |
WTL90-1.35X35 | 1.35X | 90 | 0.9 | <0.1 | <0.1 | 9.9 | F19.9 | 95 | 21.2 | 30.3 | 26.7*17.8 |
WTL150-076X35 | 0.76X | 150 | 2.2 | <0.1 | <0.1 | 13.4 | F15.2 | 95 | 37.7 | 53.9 | 47.4*31.6 |
WTL150-063X35 | 0.63X | 150 | 3.3 | <0.1 | <0.1 | 16.8 | F15.8 | 95 | 45.5 | 65 | 57.1*38.1 |
WTL189-061X35 | 0.61X | 189 | 3.6 | <0.1 | <0.1 | 16.8 | F16 | 120 | 47 | 67.1 | 59*39.3 |
WTL220-054X35 | 0.54X | 220 | 1.7 | <0.1 | <0.1 | 24.0 | F20 | 80 | 53.1 | 75.8 | 66.7*44.4 |
WTL200-05X35 | 0.5X | 200 | 5.3 | <0.1 | <0.1 | 21.5 | F16 | 95 | 57.3 | 81.9 | 72*48 |
WTL250-046X35 | 0.46X | 250 | 6.2 | <0.1 | <0.1 | 23.3 | F16 | 95 | 62.3 | 89 | 78.3*52.2 |
WTL260-04X35 | 0.4X | 260 | 8.3 | <0.1 | <0.1 | 26.8 | F16 | 95 | 71.7 | 102.4 | 90*60 |
WTL250-035X35 | 0.35X | 250 | 10.8 | <0.1 | <0.1 | 30.7 | F16 | 95 | 81.9 | 117 | 102.9*68.6 |
WTL260-032X35 | 0.32X | 260 | 12.9 | <0.1 | <0.1 | 33.6 | F16 | 95 | 89.6 | 127.9 | 112.5*75 |
WTL315-0286X35 | 0.286X | 315 | 14.3 | <0.1 | <0.1 | 33.6 | F14.2 | 60 | 100.2 | 143.1 | 125.9*83.9 |
WTL410-025X35 | 0.25X | 410 | 21.1 | <0.1 | <0.1 | 42.9 | F16 | 95 | 114.7 | 163.8 | 144*96 |
WTL340-0218X35 | 0.218X | 340 | 27.8 | <0.1 | <0.1 | 49.2 | F16 | 95 | 131.5 | 187.8 | 165.1*110.1 |
WTL370-02X35 | 0.2X | 370 | 33.0 | <0.1 | <0.1 | 53.7 | F16 | 95 | 143.4 | 204.7 | 180*120 |
WTL400-0187X35 | 0.187X | 400 | 37.8 | <0.1 | <0.1 | 57.4 | F16 | 95 | 153.3 | 218.9 | 192.5*128.3 |
WTL410-0182X35 | 0.182X | 410 | 22.7 | <0.1 | <0.1 | 33.6 | F9.1 | 95 | 157.5 | 224.9 | 197.8*131.9 |
WTL460-0166X35 | 0.166X | 460 | 47.9 | <0.1 | <0.1 | 64.7 | F16 | 95 | 172.7 | 246.6 | 216.9*144.6 |
WTL600-011X35 | 0.11X | 600 | 93.8 | <0.1 | <0.1 | 83.9 | F13.8 | 80 | 260.6 | 372.2 | 327.3*218.2 |

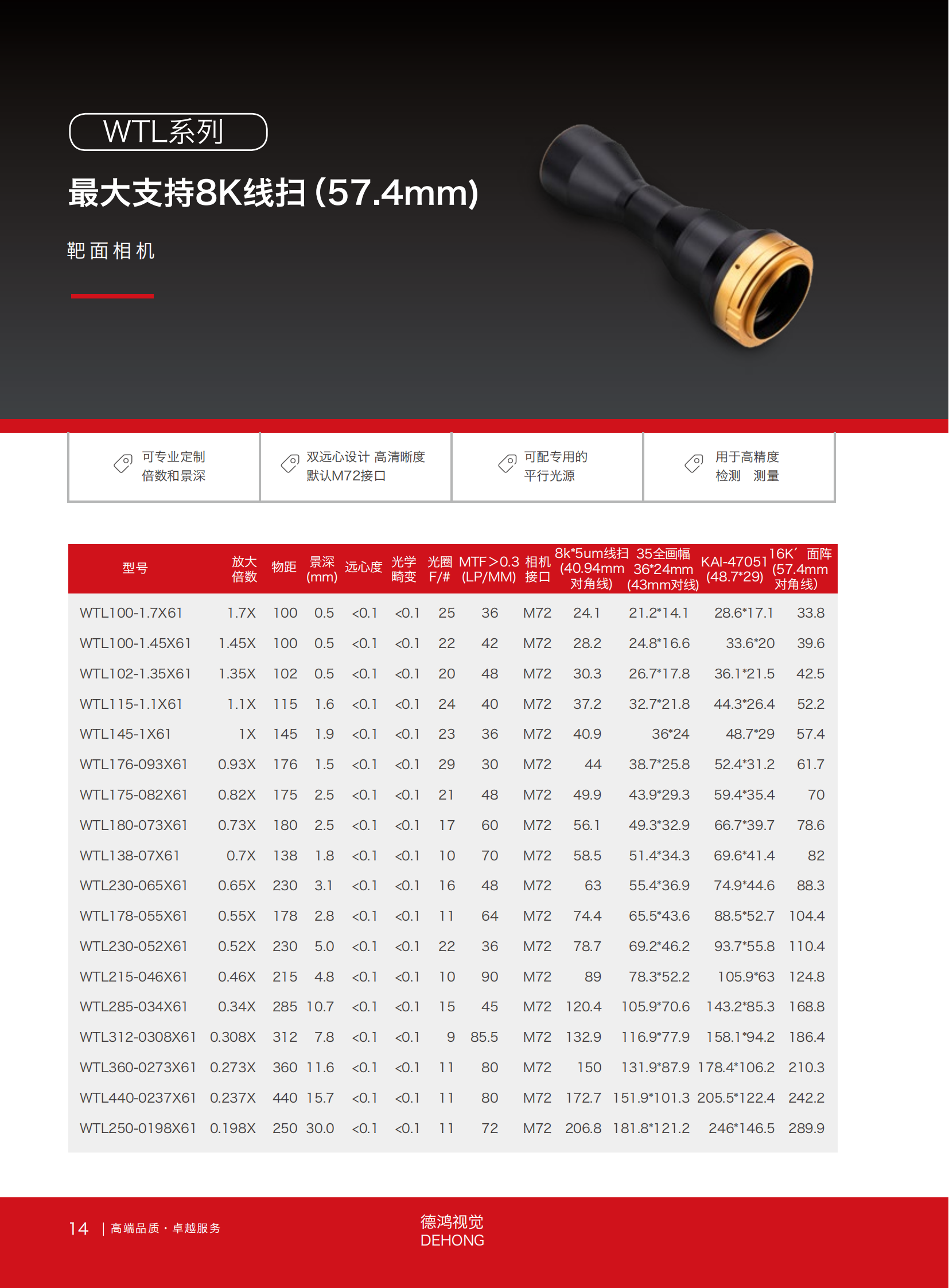

型号 | 放大倍数 | 物距 | 景深 (mm) | 远心度 | 光学畸变 | 分辨率 (um) | 光圈 (F) | MTF>0.3 (LP/MM) | 8k*5um线扫 (40.94mm对角线) | 35全画幅36*24mm (43mm对线) | KAI-47051 (48.7*29) | 16K′面阵 (57.4mm对角线) |
WTL100-1.7X61 | 1.7X | 100 | 0.5 | <0.1 | <0.1 | 9.9 | F24.9 | 60 | 24.1 | 21.2*14.1 | 28.6*17.1 | 33.8 |
WTL100-1.45X61 | 1.45X | 100 | 0.5 | <0.1 | <0.1 | 10.2 | F22 | 60 | 28.2 | 24.8*16.6 | 33.6*20 | 39.6 |
WTL102-1.35X61 | 1.35X | 102 | 0.5 | <0.1 | <0.1 | 10.2 | F20 | 60 | 30.3 | 26.7*17.8 | 36.1*21.5 | 42.5 |
WTL115-1.1X61 | 1.1X | 115 | 1.6 | <0.1 | <0.1 | 14.6 | F23 | 55 | 37.2 | 32.7*21.8 | 44.3*26.4 | 52.2 |
WTL145-1X61 | 1X | 145 | 1.9 | <0.1 | <0.1 | 15.3 | F22.7 | 60 | 40.9 | 36*24 | 48.7*29 | 57.4 |
WTL180-093X61 | 0.93X | 180 | 1.5 | <0.1 | <0.1 | 21.0 | F16 | 70 | 44 | 38.7*25.8 | 52.4*31.2 | 61.7 |
WTL175-082X61 | 0.82X | 175 | 2.5 | <0.1 | <0.1 | 16.8 | F20 | 60 | 49.9 | 43.9*29.3 | 59.4*35.4 | 70 |
WTL180-073X61 | 0.73X | 180 | 2.5 | <0.1 | <0.1 | 15.3 | F16 | 80 | 56.1 | 49.3*32.9 | 66.7*39.7 | 78.6 |
WTL150-07X61 | 0.7X | 150 | 1.8 | <0.1 | <0.1 | 9.6 | F10 | 75 | 58.5 | 51.4*34.3 | 69.6*41.4 | 82 |
WTL230-065X61 | 0.65X | 230 | 3.1 | <0.1 | <0.1 | 16.8 | F16 | 80 | 63 | 55.4*36.9 | 74.9*44.6 | 88.3 |
WTL185-055X61 | 0.55X | 185 | 2.8 | <0.1 | <0.1 | 14.0 | F11 | 80 | 74.4 | 65.5*43.6 | 88.5*52.7 | 104.4 |
WTL230-052X61 | 0.52X | 230 | 5.0 | <0.1 | <0.1 | 28.0 | F21 | 60 | 78.7 | 69.2*46.2 | 93.7*55.8 | 110.4 |
WTL215-046X61 | 0.46X | 215 | 4.8 | <0.1 | <0.1 | 15.3 | F10.4 | 100 | 89 | 78.3*52.2 | 105.9*63 | 124.8 |
WTL285-034X61 | 0.34X | 285 | 10.7 | <0.1 | <0.1 | 31.6 | F15 | 75 | 120.4 | 105.9*70.6 | 143.2*85.3 | 168.8 |
WTL312-0308X61 | 0.308X | 312 | 7.8 | <0.1 | <0.1 | 19.7 | F9 | 95 | 132.9 | 116.9*77.9 | 158.1*94.2 | 186.4 |
WTL360-0273X61 | 0.273X | 360 | 11.6 | <0.1 | <0.1 | 25.8 | F10.5 | 75 | 150 | 131.9*87.9 | 178.4*106.2 | 210.3 |
WTL440-0237X61 | 0.237X | 440 | 15.7 | <0.1 | <0.1 | 30.5 | F10.7 | 80 | 172.7 | 151.9*101.3 | 205.5*122.4 | 242.2 |
WTL250-0198X61 | 0.198X | 250 | 30.0 | <0.1 | <0.1 | 37.3 | F11 | 120 | 206.8 | 181.8*121.2 | 246*146.5 | 289.9 |
